FDTN408H FAN ASSY AND CABINET

Name: FDTN408H FAN ASSY AND CABINET
SKU: FDTN408H FAN ASSY AND CABINET
Availability: InStock

FDTN408H FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

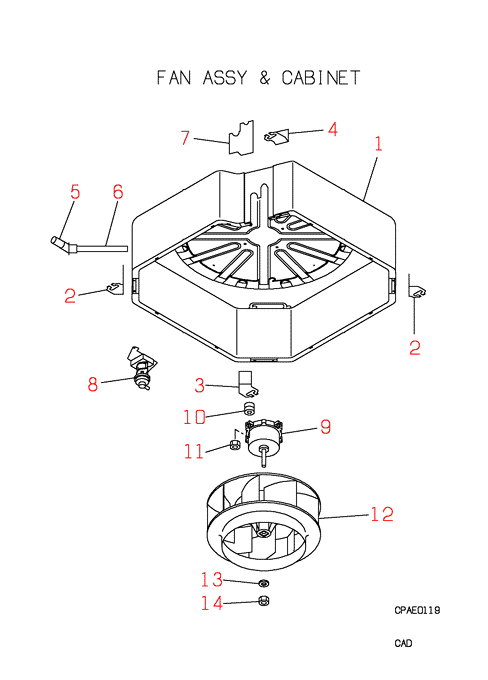

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact

PJA100A500B

CABINET ASSY

Contact

[2] Contact

PJA032A500

HOLDER

Contact

[3] Contact

PJA032A500A

HOLDER

Contact

[4] Contact

PJA032A501

HOLDER

Contact

[5] Out of Stock

SSA422C086

SOCKET

[5-6] In Stock

PJA422C500A

SOCKET ASSY

Notes: INC. INTERNAL HOSE; FOR EXTERNAL USE PJA006A317 Show Image

[6] In Stock

PJA422C500A

SOCKET ASSY

Notes: INC. INTERNAL HOSE; FOR EXTERNAL USE PJA006A317 Show Image

[7] Contact

PJA132A500

LID

Contact

[8] In Stock

PJA451A510Z

PUMP DRAIN

Show Image

[9] Out of Stock

SSA511A594A

MOTOR,AC

Substitute: OUT OF PRODUCTION

[10] Contact

SSA941C174

CUSHION RUB

Contact

[11] In Stock

SSA914C015A

NUT FLANGE

Notes: 1pc Show Image

[12] In Stock

SSA431J010

FAN,TURBO

[13] In Stock

W205H10

WASHER

Notes: 1pc ONLY Show Image

[14] In Stock

N001A10

NUT

Notes: 1pc Show Image

[15] In Stock

PSA006A039

HOSE SET, DRAIN

SKU: FDTN408H FAN ASSY AND CABINET Category: Uncategorised
