FDTN406CES HEAT EXCH. ASSY

Name: FDTN406CES HEAT EXCH. ASSY
SKU: FDTN406CES HEAT EXCH. ASSY
Availability: InStock

FDTN406CES HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

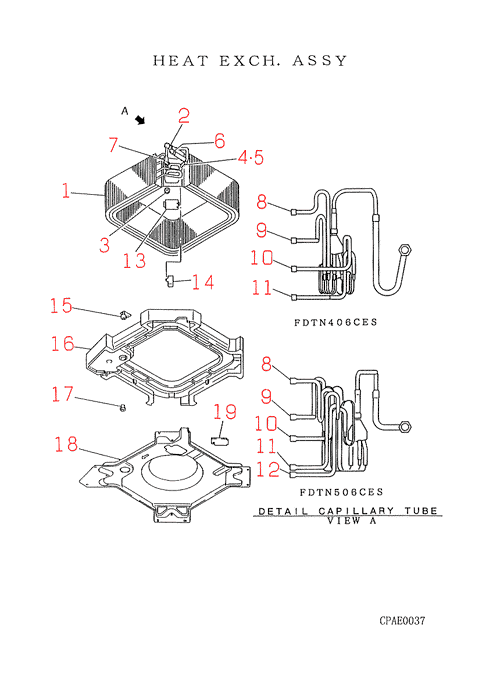

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-11] Contact

PJA311A320D

HEAT EXCHANGER,AIR

Contact

[2] Contact

SSA323F012D

UNION

Contact

[3] In Stock

S751W25X

GROMMET

Show Image

[4] Out of Stock

PJA551A005

SENSOR

Notes: THI-R Show Image

[5] In Stock

RKJ941F001

SPRING LEAF

Show Image

[6] Contact

SSA323F075A

UNION

Contact

[7-11] Contact

PJA315A326

DISTRIBUTOR

Contact

Notes: INCL.INNER STRAINER

[8] Contact

PJA315B555

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D3.0XD5.0 L200

[9] Contact

PJA315B556

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D2.8XD4.0 L500

[10] Contact

PJA315B557

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D3.5XD5.0 L200

[11] Contact

PJA315B558

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D3.0XD5.0 L300

[13] Contact

PJA129A319

COVER

Contact

[14] Out of Stock

SSA552A862H

CAPACITOR

Substitute: OUT OF PRODUCTION Notes: CFI, CFO1,2

[15] In Stock

PJA536A302

SWITCH FLOAT

Notes: FS, LENGTH 47.3CM Show Image

[16-17] In Stock

PJA454A300

PAN DRAIN

[17] Contact

SSA326A022

PLUG

Contact

[18] Contact

PJA433A300

BELLMOUTH

Contact

[19] Contact

PJA142A303

COVER

Contact

SKU: FDTN406CES HEAT EXCH. ASSY Category: Uncategorised
