FDTJ140HKXE2 HEAT EXCH. ASSY

Name: FDTJ140HKXE2 HEAT EXCH. ASSY
SKU: FDTJ140HKXE2 HEAT EXCH. ASSY
Availability: InStock

FDTJ140HKXE2 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

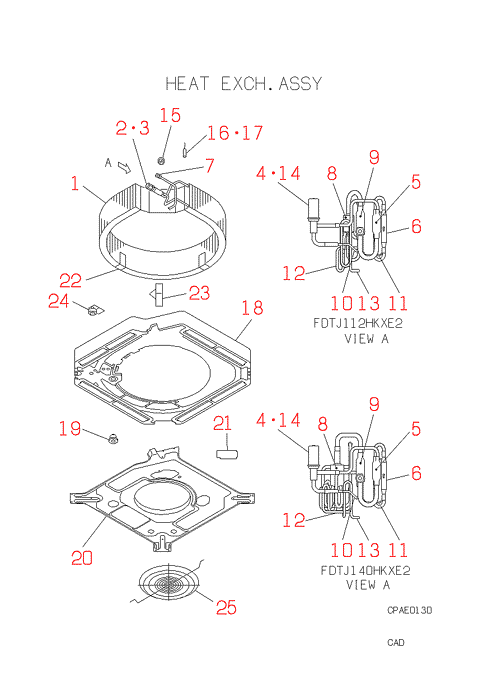

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA311A503

HEAT,EX,AIR

Contact

[1-17] Contact

PJA301A506B

HEAT,EX,AIR

Contact

[2-3] Contact

PJA315D503A

HEADER ASY

Contact

[3] Contact

SSA323F012D

UNION

Contact

[4] In Stock

SSA387F022A

EXP HKXA

Show Image

[5] Contact

SSA357A008BK

STRAINER

Contact

[5-7] Contact

PJA321A869

PIPNG ASY

Contact

[6] In Stock

SSA385A015

VALVE CHECK

Show Image

[7] Contact

SSA323F012A

UNION

Contact

[8] Contact

SSA315A273

DISTRIBUTOR

Contact

[8-13] Contact

PJA315A511

DISTRI ASSY

Contact

[9] Contact

SSA357A008BH

STRAINER

Contact

[10] Contact

PJA315B737

CAPILARY AS

Contact

Notes: !D3.0XD5.0 L100

[11] Contact

PJA315B738

CAPILARY AS

Contact

Notes: !D1.0XD2.0 L500

[12] Contact

PJA315B720

CAPILLARY

Contact

Notes: !D3.0XD5.0 L300

[13] Contact

PJA315B721

CAPILLARY

Contact

Notes: !D3.0XD5.0 L300

[14] In Stock

SSA382F452B

COIL S 150O

Notes: SM, EXPANSION VALVE COIL/ LENGTH 157CM Show Image

[15] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[16] In Stock

PJA551A005W

SENSOR

Notes: THI-R Show Image

[17] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[19] Contact

SSA326A022

PLUG

Contact

[20] Contact

PJA433A501

BELLMOUTH

Contact

[21] Contact

PJA142A504A

COVER

Contact

[22] Contact

PJA116A500A

BRACKET

Contact

[23] Out of Stock

SSA552A862H

CAPACITOR

Substitute: OUT OF PRODUCTION Notes: CFO1,2

[24] In Stock

PJA536A500

SWITCH FLOAT

Notes: FS Show Image

[25] Contact

PJA131A003

GUARD,FAN

Contact

SKU: FDTJ140HKXE2 HEAT EXCH. ASSY Category: Uncategorised
