FDTCA56KXE4R PANEL ASSY

Name: FDTCA56KXE4R PANEL ASSY
SKU: FDTCA56KXE4R PANEL ASSY
Availability: InStock

FDTCA56KXE4R PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

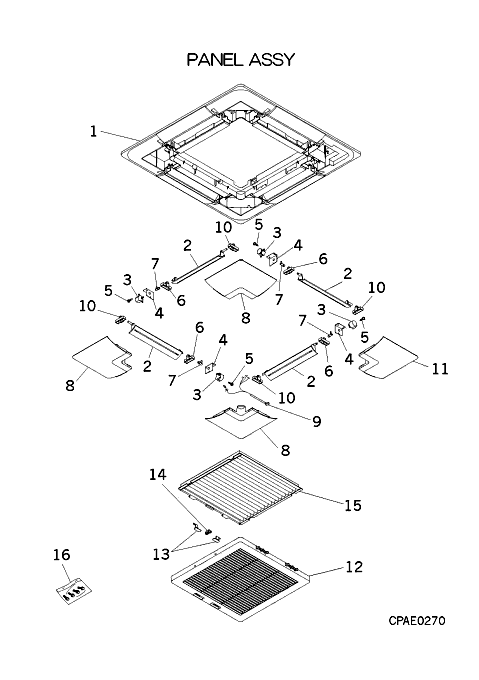

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA122A752

PANEL,FRONT

[1-11] Contact

PJA122A751

PANEL ASSY,FRONT

Contact

Notes: !

[1-16] Contact

PJA122A750A

PANEL ASSY,FRONT

Contact

Notes: !TC-PSA-24W-ER

[2] In Stock

PJA436A751

LOUVER,BLOW

Show Image

[2-7] In Stock

PJA436A750

LOUVER ASSY

Show Image

[3] In Stock

SSA512T158

MOTOR STEPPING

Show Image

[3-5] In Stock

PJA512T750

MOTOR ASSY

Show Image

[4] Contact

PJA116A756

BRACKET

Contact

[5] Contact

W006D04X008

TAP-SCREW,CRS-PAN

Contact

Notes: 4X8, 1pc ONLY, 4X8

[6] Contact

PJA129A750

CLAMP

Contact

[7] In Stock

PJA144A750

CRANK(A)

Show Image

[8] In Stock

PJA132A753

LID ASSY,CO

Show Image

[9] Contact

PJA504A759

WIRING ASSY

Contact

[10] Contact

PJA129A750

CLAMP

Contact

[11] Contact

PJA132A753A

LID ASSY,CORNER

Contact

Substitute: PJA132A753B

[12-14] In Stock

PJA435A750

GRILLE ASSY

[13] In Stock

PJA129A753

STOPPER,G

Show Image

[14] In Stock

PJA129A755

STOPPER,F

Show Image

[15] Out of Stock

PJA437A750

FILTER,AIR

Substitute: PJA437A750A Notes: W356.5XD363.2(T25)

[16] In Stock

PJA006A750

PARTS SET

Notes: 4 large bolts with metal & rubber washers, plastic clip/hinge, metal chain & small screws
