FDTCA56KXE4A HEAT EXCH. ASSY

Name: FDTCA56KXE4A HEAT EXCH. ASSY
SKU: FDTCA56KXE4A HEAT EXCH. ASSY
Availability: InStock

FDTCA56KXE4A HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

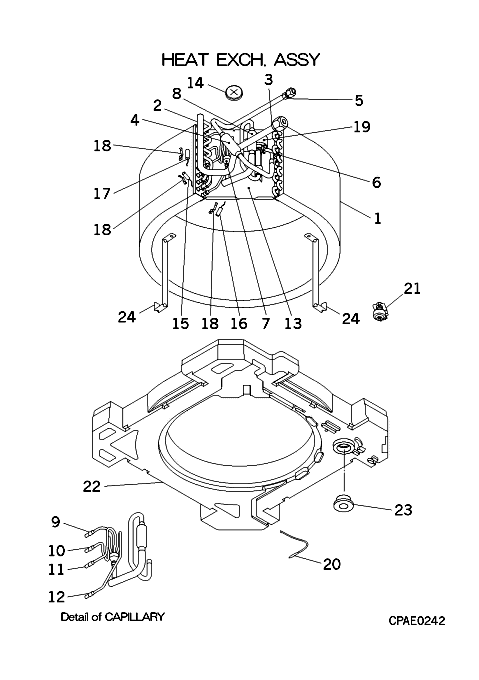

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA311A750

HEAT EXCH(AIR)

Contact

[1-19] Contact

PJA301A750A

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJA315D750

HEADER ASSY,GAS

Contact

[3] In Stock

SSA323F012B

UNION

Notes: GAS Show Image

[4] In Stock

SSA357A059B

STRAINER

[4-5] Contact

PJA304A750

PIPING ASSY

Contact

[5] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[6] Out of Stock

SSA387F047

VALVE EXP

Notes: EEVH or SM, EEV - VALVE BODY Show Image

[7] Out of Stock

SSA315A252A

DISTRIBUTOR

[7-12] Contact

PJA315A750

DISTRIBUTOR ASSY

Contact

[8] In Stock

SSA357A059T

STRAINER

[9] Contact

PJA315B956

CAPILLARY

Contact

Notes: !D3.0XD4.0 L100

[10] Contact

PJA315B956A

CAPILLARY

Contact

Notes: !D3.0XD4.0 L170

[11] Contact

PJA315B956B

CAPILLARY

Contact

Notes: !D3.0XD4.0 L150

[12] Contact

PJA315B956C

CAPILLARY

Contact

Notes: !D3.0XD4.0 L210

[13] Contact

PJA141A750

PLATE ASSY,BAFFLE

Contact

[14] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[15] In Stock

PJA551A005CA

SENSOR ASSY

Notes: THI-R1(U-BEND) Show Image

[16] In Stock

PJA551A005CB

SENSOR(TEMP

Notes: THI-R2(CAPILLARY)

[17] In Stock

PJA551A005CD

SENSOR (TEMP)

Notes: THI-R3(GAS HEADER) Show Image

[18] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[19] In Stock

SSA382F228AS

COIL SOLENOID

Notes: FOR SM, LENGTH 30CM Show Image

[20] In Stock

PJA551A010W

SENSOR(TEMP

Notes: THI-A Show Image

[21] Out of Stock

PJA536A700B

SWITCH ASSY

Substitute: OUT OF PRODUCTION Notes: FS Show Image

[22-23] In Stock

PJA454A750A

PAN ASSY,DR

[23] Contact

SSA326A022

PLUG

Contact

[24] Contact

PJA116A754

BRACKET

Contact

SKU: FDTCA56KXE4A HEAT EXCH. ASSY Category: Uncategorised
