FDTCA45KXE4A CONTROL AND PARTS SET

Name: FDTCA45KXE4A CONTROL AND PARTS SET
SKU: FDTCA45KXE4A CONTROL AND PARTS SET
Availability: InStock

FDTCA45KXE4A CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

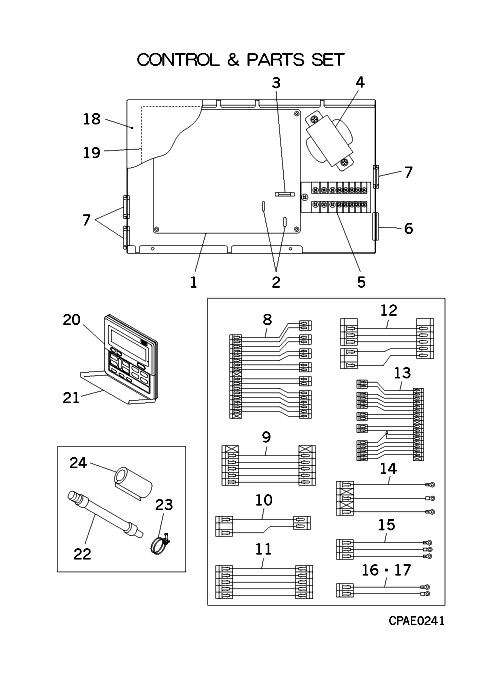

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-17] Contact

PJA501A750C

Contact

[1-3] Out of Stock

PJA505A143ZA

PWB ASSY

Substitute: OUT OF PRODUCTION

[2] Contact

SSA555B022A

VARISTOR

Contact

[3] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[4] In Stock

SSA554A455

TRANSFORMER

[5] Contact

SSA561B716DG

BLOCK TERMI

Contact

[6] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[7] Contact

SSA947B014A

GROMMET

Contact

[8] Contact

PJA504A750

HARNESS ASSY(V,LOW

Contact

Notes: CNC-CNI2,CNH2,CNN3,CNN4,CNN5,CNA2

[9] Out of Stock

PJA504A753

HARNESS

Notes: CNM3-CNM4

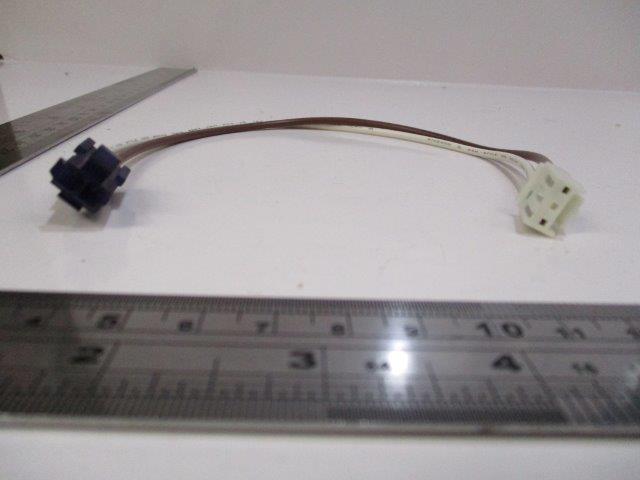

[10] In Stock

PJA504A712A

WIRING

Notes: CNR-CNR2 Show Image

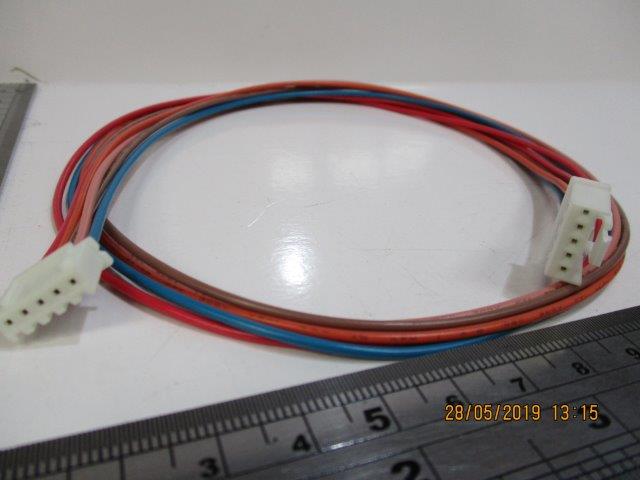

[11] In Stock

PJA504A755

WIRING(LM)

Notes: CNJ-CNJ2 Show Image

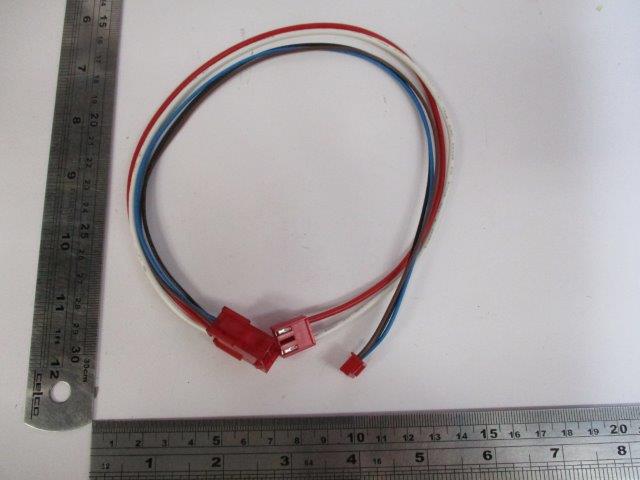

[12] In Stock

PJA504A708C

WIRING

Notes: CNM2,CNM1-CNM3 Show Image

[13] Contact

PJA504A757

WIRING ASSY(V,LOW)

Contact

Notes: CNI,CNH,CNN1,CNN2,CNA-CNC

[14] Contact

PJA504A758

WIRING(TB)

Contact

Notes: CNW0-CTRL BOX EARTH

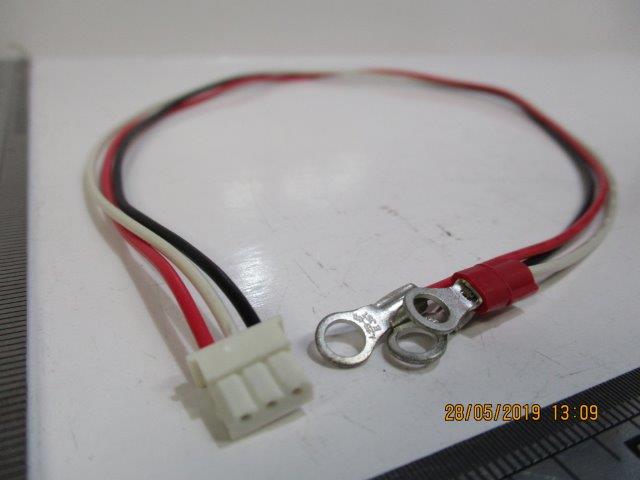

[15] In Stock

PJA504A714B

WIRING (TB,X

Notes: CNB-TB X,TB Y,TB Z Show Image

[16] Contact

PJA504A717A

WIRING(TB,AB)

Contact

Notes: CNK1-TB A,TB B

[17] Contact

PJA504A716

WIRING(CNU)

Contact

Notes: CNU-TB1 1,TB2 2

[18-19] Contact

PJA142A752

LID ASSY,CONTROL B

Contact

[19] Contact

PJA011G750

LABEL,WIRING

Contact

[20-21] Contact

PJA502A700A

REMOTE Z

Contact

Substitute: PJA502A700B Notes: RC-E1

[21] Contact

PJA129A708

COVER Z

Contact

[22] In Stock

PSA006A039

HOSE SET, DRAIN

[22-24] In Stock

PJA006A317K

INSTALATION

[23] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[24] Contact

PJA153B007

INSULATION,PIPE

Contact

[25] Contact

PJA011F750D

Contact

SKU: FDTCA45KXE4A CONTROL AND PARTS SET Category: Uncategorised
