FDTCA28KXE4R HEAT EXCH. ASSY

Name: FDTCA28KXE4R HEAT EXCH. ASSY
SKU: FDTCA28KXE4R HEAT EXCH. ASSY
Availability: InStock

FDTCA28KXE4R HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

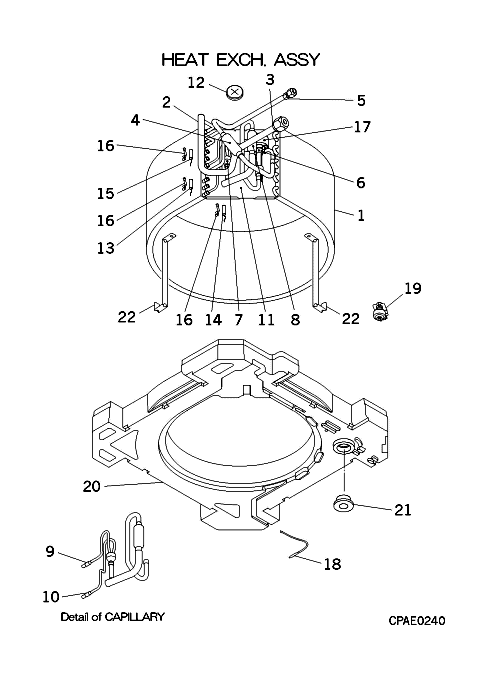

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA311A751

HEAT EXCH(AIR)

Contact

Notes: !

[1-17] Contact

PJA301A751

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJA315D752

HEADER ASSY,GAS

Contact

Notes: !

[3] Contact

SSA323F012A

UNION

Contact

Notes: GAS

[4] In Stock

SSA357A059B

STRAINER

[4-5] Contact

PJA304A750

PIPING ASSY

Contact

[5] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[6] Out of Stock

SSA387F047

VALVE EXP

Notes: SM, EEV - VALVE BODY Show Image

[7] Contact

SSA315A252C

DISTRIBUTOR

Contact

[7-10] Contact

PJA315A751

DISTRIBUTOR ASSY

Contact

[8] In Stock

SSA357A059T

STRAINER

[9] Contact

PJA315B957

CAPILLARY

Contact

Notes: !D3.0XD4.0 L210, !D3.0XD4.0

[10] Contact

PJA315B957A

CAPILLARY

Contact

Notes: !D2.8XD4.0 L150, !D2.2XD4.0

[11] Contact

PJA141A750

PLATE ASSY,BAFFLE

Contact

[12] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[13] In Stock

PJA551A005CC

SENSOR(TEMP

Notes: THI-R1(U-BEND), THI-R1 Show Image

[14] In Stock

PJA551A005CB

SENSOR(TEMP

Notes: THI-R2(CAPILLARY)

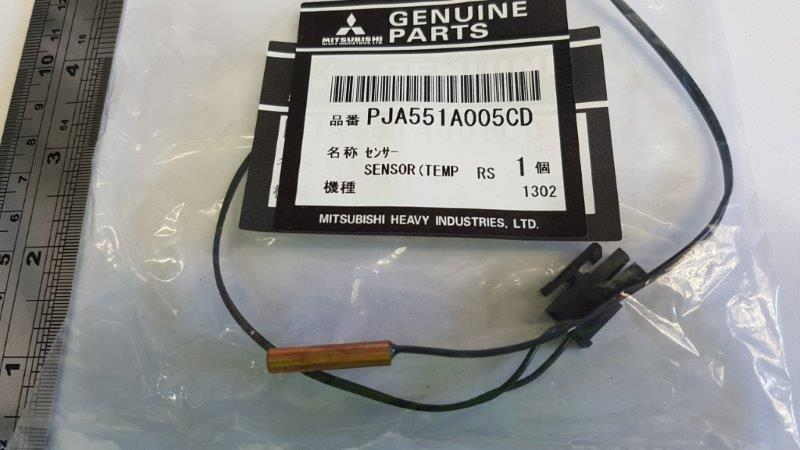

[15] In Stock

PJA551A005CD

SENSOR (TEMP)

Notes: THI-R3(GAS HEADER) Show Image

[16] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[17] In Stock

SSA382F228AS

COIL SOLENOID

Notes: FOR SM, LENGTH 30CM Show Image

[18] In Stock

PJA551A010W

SENSOR(TEMP

Notes: THI-A Show Image

[19] Out of Stock

PJA536A700B

SWITCH ASSY

Substitute: OUT OF PRODUCTION Notes: FS Show Image

[20-21] Contact

PJA454A750

PAN ASSY,DRAIN

Contact

[21] Contact

SSA326A022

PLUG

Contact

[22] Contact

PJA116A754A

BRACKET

Contact

SKU: FDTCA28KXE4R HEAT EXCH. ASSY Category: Uncategorised
