FDTC50VH/1 CONTROL AND PARTS SET

Name: FDTC50VH/1 CONTROL AND PARTS SET
SKU: FDTC50VH/1 CONTROL AND PARTS SET
Availability: InStock

FDTC50VH/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

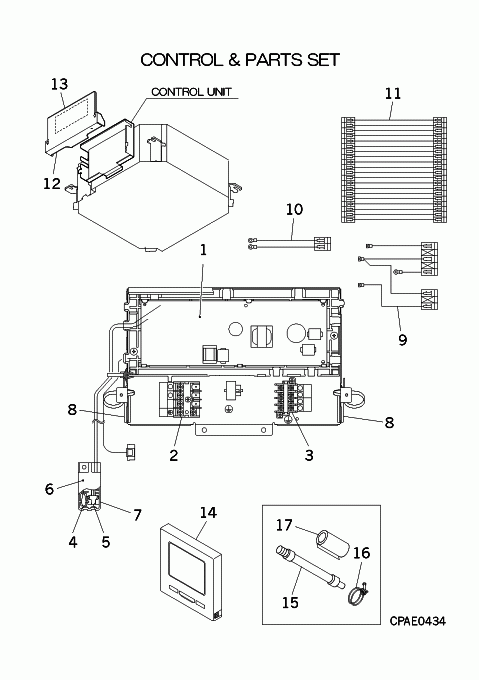

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A265BA

PWB ASSY (MAIN)

Notes: ONLY FOR SUPPLY PARTS

[1-11] Contact

PJF501A500CG

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

PSA551A001HA

SENSOR ASSY

Notes: THI-A Show Image

[5] In Stock

SSA551B017G

SENSOR(HUMIDITY)

Notes: HS, LENGTH 52.5CM Show Image

[6] Contact

PJF129A510

COVER,HOLDER

Contact

[7] Contact

PJF129A509

BASE,HOLDER

Contact

[8] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[9] Contact

PJF504A503

WIRING(TB,POWER)

Contact

[10] Contact

PJF504A047B

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[11] In Stock

PJF504A001F

WIRING(LM)

Notes: CNJ2- CNJ PWB, approx. 37cm long. Show Image

[12] In Stock

PJF142A502

LID,CONTROL BOX

[13] Contact

PJF011G501

LABEL,WIRING

Contact

Notes: !

[14] Contact

PJZ502A031AC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH

[15] In Stock

PSA423A004A

HOSE ASSY, DRAIN

Notes: LENGTH 18CM Show Image

[15-17] In Stock

PSA008A427A

PARTS SET(A)

Notes: includes Drain hose, clamp & insulation

[16] Contact

V300Y32

HOSE CLAMP

Contact

[17] Contact

SSA153B022BH

INSULATION,PIPE

Contact

[18] Contact

PJF011F507D

LABEL,MODEL NAME

Contact

Notes: !
