FDTC50VF/A HEAT EXCH. ASSY

Name: FDTC50VF/A HEAT EXCH. ASSY
SKU: FDTC50VF/A HEAT EXCH. ASSY
Availability: InStock

FDTC50VF/A HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

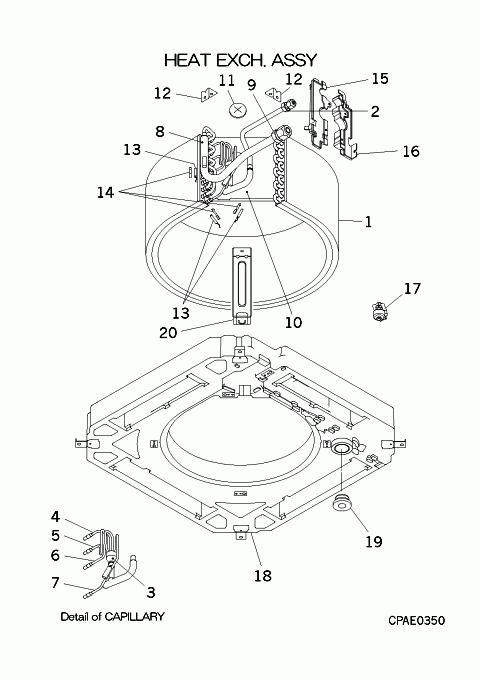

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA311A780

HEAT EXCH(AIR)

Contact

Notes: Not suitable for this model

[1-16] In Stock

PJA301A782

HEAT EXCH ASSY(AIR

[2] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[3] Out of Stock

SSA315A252A

DISTRIBUTOR

Notes: Not suitable for this model

[3-7] In Stock

PJA315A781

DISTRIBUTOR ASSY

Show Image

[4] Contact

PJA315B956

CAPILLARY

Contact

Notes: !D3.0XD4.0 L100

[5] Contact

PJA315B956D

CAPILLARY

Contact

Notes: !D3.0XD4.0 L180

[6] Contact

PJA315B956B

CAPILLARY

Contact

Notes: !D3.0XD4.0 L150

[7] Contact

PJA315B956C

CAPILLARY

Contact

Notes: !D3.0XD4.0 L210

[8-9] Contact

PJA315D780

HEADER ASSY,GAS

Contact

Notes: Not suitable for this model

[9] Contact

SSA323F012G

UNION,SOLDER

Contact

Notes: GAS

[10-11] Contact

PJA141A780A

PLATE ASSY,BAFFLE

Contact

[11] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[12] Contact

PJF116A010

BRACKET

Contact

[13] Out of Stock

PSA551A017D

SENSOR ASSY

Notes: Heat exchanger coil sensors - includes three coil sensors

[14] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[15] Contact

PJA132A782

LID ASSY(A)

Contact

[16] Contact

PJA132A783

LID ASSY(B)

Contact

[17] In Stock

SSA536A017AD

SWITCH,FLOAT

Notes: FS

[18-19] In Stock

PJA454A780

PAN ASSY,DRAIN

Notes: FOAM DRIP TRAY

[19] In Stock

SSA326A048

PLUG

Show Image

[20] Contact

PJF116A011A

BRACKET

Contact

Substitute: PJF116A030
