FDTC40V/B HEAT EXCH. ASSY

Name: FDTC40V/B HEAT EXCH. ASSY
SKU: FDTC40V/B HEAT EXCH. ASSY
Availability: InStock

FDTC40V/B HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

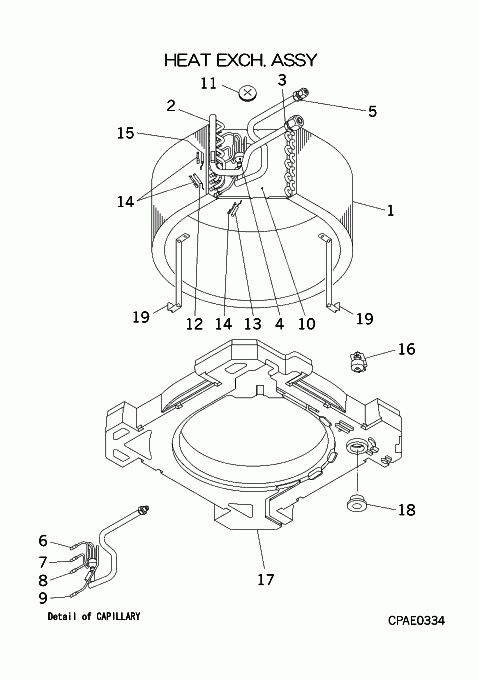

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA311A750

HEAT EXCH(AIR)

Contact

Notes: !

[1-15] Contact

PJA301A752A

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJA315D750C

HEADER ASSY,GAS

Contact

Notes: !

[3] In Stock

SSA323F012B

UNION

Notes: GAS Show Image

[4] Out of Stock

SSA315A252A

DISTRIBUTOR

Notes: !

[4-9] Contact

PJA315A752A

DISTRIBUTOR ASSY

Contact

[5] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[6] Contact

PJA315B956

CAPILLARY

Contact

Notes: !D3.0XD4.0 L100

[7] Contact

PJA315B956A

CAPILLARY

Contact

Notes: !D3.0XD4.0 L170

[8] Contact

PJA315B956B

CAPILLARY

Contact

Notes: !D3.0XD4.0 L150

[9] Contact

PJA315B956C

CAPILLARY

Contact

Notes: !D3.0XD4.0 L210

[10] Contact

PJA141A750A

PLATE ASSY,BAFFLE

Contact

[11] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[12] Out of Stock

PJA551A005

SENSOR

Notes: THI-R1, THI-R Show Image

[13] In Stock

PJA551A005CB

SENSOR(TEMP

Notes: THI-R2, THI-R2(CAPILLARY)

[14] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[15] In Stock

PSA551A007B

SENSOR

Notes: THI-R3 Show Image

[16] In Stock

SSA536A017AD

SWITCH,FLOAT

Notes: FS

[17-18] In Stock

PJA454A750A

PAN ASSY,DR

[18] Contact

SSA326A022

PLUG

Contact

[19] Contact

PJA116A754

BRACKET

Contact
