FDTC36KXE6 CONTROL AND PARTS SET

Name: FDTC36KXE6 CONTROL AND PARTS SET
SKU: FDTC36KXE6 CONTROL AND PARTS SET
Availability: InStock

FDTC36KXE6 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

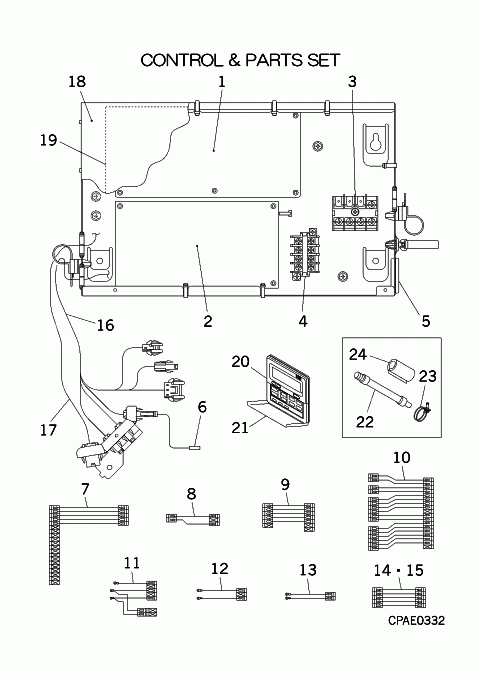

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

PJA505A200DA

PWB (POWER)

Notes: POWER PCB - PLUGS INTO FAN MOTOR Show Image

[1-17] Contact

PJA501A753AC

Contact

[2] In Stock

PJA505A202BB

PWB ASSY

Notes: CONTROL PCB - DOES NOT PLUG INTO FAN MOTOR Show Image

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[6] In Stock

PJA551A010Z

SENSOR

Notes: THI-A

[7] Contact

PJA504A762

WIRING(DM)

Contact

Notes: CNR2-CNR PWB

[8] Contact

PJA504A761

WIRING(LM)

Contact

Notes: CNJ PWB-CNJ2

[9] In Stock

PJA504A763

WIRING(FM)

Notes: CNM3-CNM PWB, CNM3- CNM PWB Show Image

[10] Contact

PJA504A764

WIRING(V,LOW)

Contact

Notes: CNI PWB,CNH PWB,CNN PWB,CNA PWB-CNC, CNI PWB,CNH PWB,CNN PWB,CAN PWB- CNC

[11] Contact

PJF504A008A

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2-CNW0 PWB,CNU, CONT E,TB1 1,TB1 2- CNW0 PWB,CNU

[12] Out of Stock

PJF504A006D

WIRING(TB,XY)

Notes: TB2 X,TB2 Y-CNB PWB, TB2 X,TB2 Y- CNB PWB. DOES NOT PLUG INTO RECEIVER PWB Show Image

[13] Contact

PJF504A010C

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B-CNK1 PWB, TB2 A,TB2 B- CNK1 PWB

[14] In Stock

PJF504A003B

WIRING(PWB)

Notes: CNW4 PWB-CNW1 PWB, CNW4 PWB- CNW1 PWB Show Image

[15] In Stock

PJF504A003C

WIRING(PWB)

Notes: CNW3 PWB-CNW2 PWB, CNW3 PWB- CNW2 PWB Show Image

[16] Contact

PJA504A773

HARNESS ASSY(V,LOW

Contact

[17] Out of Stock

PJA504A753A

HARNESS ASSY(MOTOR

Notes: CNM3-CNM4, CNM3- CNM4 Show Image

[18-19] Contact

PJA142A754

LID ASSY,CONTROL B

Contact

[19] Contact

PJA011G754

LABEL,WIRING

Contact

[20-21] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E3, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[21] Contact

PJA129A708

COVER Z

Contact

[22] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[22-24] Contact

PJA008A308AC

PARTS SET

Contact

[23] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[24] Contact

PJA153B007

INSULATION,PIPE

Contact

[25] Contact

PJA011F755C

Contact

SKU: FDTC36KXE6 CONTROL AND PARTS SET Category: Uncategorised
