FDTC22KXE6 HEAT EXCH. ASSY

Name: FDTC22KXE6 HEAT EXCH. ASSY
SKU: FDTC22KXE6 HEAT EXCH. ASSY
Availability: InStock

FDTC22KXE6 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

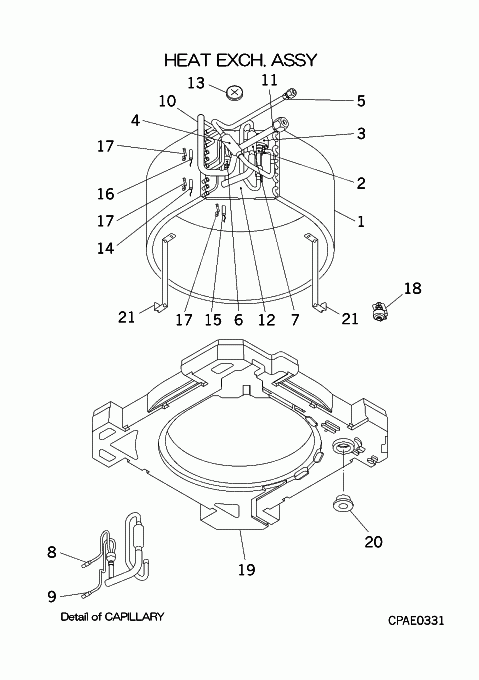

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA311A751

HEAT EXCH(AIR)

Contact

[1-17] Contact

PJA301A751A

HEAT EXCH ASSY(AIR

Contact

[2] Out of Stock

SSA387F047

VALVE EXP

Notes: SM, EEV - VALVE BODY Show Image

[3] In Stock

SSA382F228AS

COIL SOLENOID

Notes: FOR SM, LENGTH 30CM Show Image

[4] In Stock

SSA357A059B

STRAINER

[5] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[6] Contact

SSA315A252C

DISTRIBUTOR

Contact

[6-9] Contact

PJA315A751

DISTRIBUTOR ASSY

Contact

[7] In Stock

SSA357A059T

STRAINER

[8] Contact

PJA315B957

CAPILLARY

Contact

Notes: !D3.0XD4.0

[9] Contact

PJA315B957A

CAPILLARY

Contact

Notes: !D2.2XD4.0

[10-11] Contact

PJA315D752A

HEADER ASSY,GAS

Contact

[11] Contact

SSA323F012A

UNION

Contact

Notes: GAS

[12] Contact

PJA141A750

PLATE ASSY,BAFFLE

Contact

[13] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[14] In Stock

PJA551A005CC

SENSOR(TEMP

Notes: THI-R1 Show Image

[15] In Stock

PJA551A005CB

SENSOR(TEMP

Notes: THI-R2, THI-R2(CAPILLARY)

[16] In Stock

PSA551A007B

SENSOR

Notes: THI-R3 Show Image

[17] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[18] In Stock

SSA536A017AD

SWITCH,FLOAT

Notes: FS

[19-20] Contact

PJA454A750

PAN ASSY,DRAIN

Contact

[20] Contact

SSA326A022

PLUG

Contact

[21] Contact

PJA116A754A

BRACKET

Contact

SKU: FDTC22KXE6 HEAT EXCH. ASSY Category: Uncategorised
