FDTA71KXE4A PANEL ASSY

Name: FDTA71KXE4A PANEL ASSY
SKU: FDTA71KXE4A PANEL ASSY
Availability: InStock

FDTA71KXE4A PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

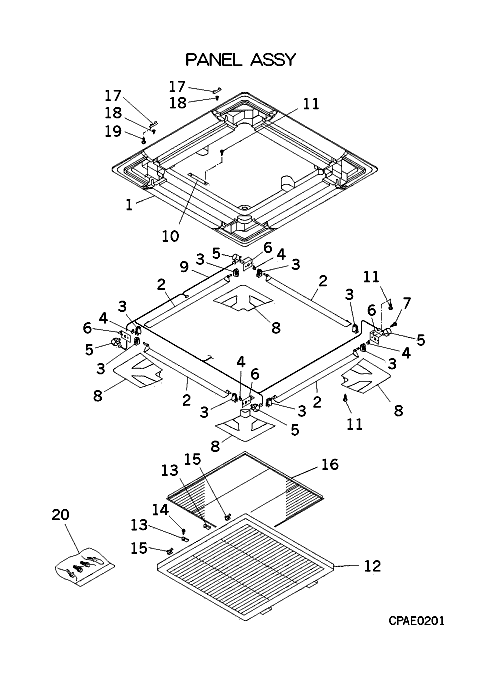

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA122A702

PANEL FRONT

Contact

[1-11] Contact

PJA122A701F

PANEL ASSY,FRONT

Contact

Notes: !T-PSA-34W-E

[2] Out of Stock

PJA436A702

LOUVER

Notes: 1pc ONLY

[2-7] Contact

PJA436A700

LOUVWR ASY

Contact

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[3] Contact

PJA129A700

COLLER

Contact

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[4] Contact

PJA144A700

COM

Contact

[5] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[5-7] In Stock

PJA512T700

MOTOR,ASSY

Show Image

[6] Contact

PJA116A703

BRACKET Z

Contact

[7] Contact

W006D04X008

TAP-SCREW,CRS-PAN

Contact

Notes: 4X8, 1pc ONLY, 4X8

[8] In Stock

PJA132A704

LID CORNER

Show Image

[9] Contact

PJA504A701A

WIRING ASSY

Contact

[10] Contact

PJA116A706

BRACKET Z

Contact

[11] In Stock

W011D04X008

TAP SCREW

Notes: 4X8, 1pc ONLY Show Image

[12] In Stock

PJA435A703A

GRILLE

[12-15] Contact

PJA435A700A

GRILLE

Contact

[13] In Stock

PJA129A508

ST0PPER G

Show Image

[14] In Stock

W011D04X010

TAP-SCREW

Notes: 4X10, ***ONE SCREW ONLY*** 1pc ONLY Show Image

[15] In Stock

PJA941F301

SPRING LEAF

[16] In Stock

PJA437A500A

FILTER

Notes: 1pc ONLY, W576XD567.5(T25)

[17] In Stock

SSA944D062

SUPPORT

Show Image

[18] In Stock

SSA944D063

STRIKE

Show Image

[19] Contact

W011D03X010

TAP-SC 3X10

Contact

Notes: 3X10

[20] Contact

PJA006A307A

PARTS SET

Contact

SKU: FDTA71KXE4A PANEL ASSY Category: Uncategorised
