FDTA501R CONTROL AND PARTS SET

Name: FDTA501R CONTROL AND PARTS SET
SKU: FDTA501R CONTROL AND PARTS SET
Availability: InStock

FDTA501R CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

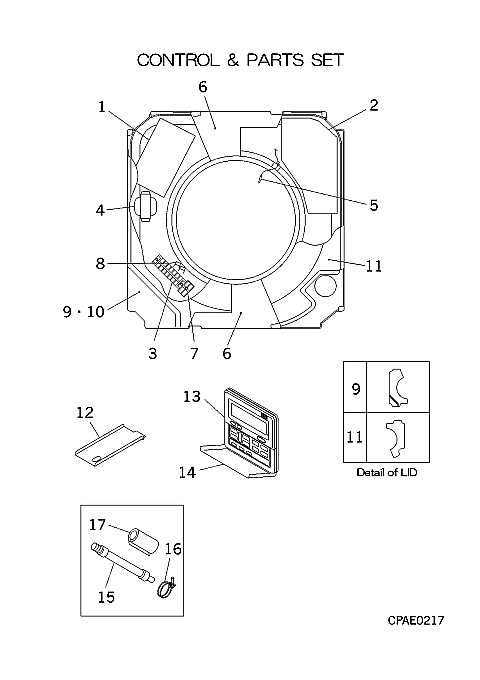

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A110ZC

PWB ASSY

Notes: NEAR TRANSFORMER Show Image

[1-8] Contact

PJA501A704K

CONTROL UNIT

Contact

[2] In Stock

PJA505A122ZF

PWB DC

Notes: CONTROL PCB Show Image

[3] Out of Stock

SSA561B677A

BLOCK TERMI

Notes: TB1

[4] In Stock

SSA554A437AA

TRANSFORMER

Show Image

[5] In Stock

PJA551A700

SENSOR

Notes: THI-A, sensor has 2 plugs - 1 black that plugs into pc board and 1 red plug for sensor Show Image

[6] In Stock

PJA142A703

LID BOX Z

Show Image

[7] Contact

SSA561B683B

BLOCK,TERMI

Contact

Notes: TB2

[8] Out of Stock

PJA552F002

CAPACITOR A

Show Image

[9-10] Contact

PJA142A704Z

LID ASSY,CONTROL B

Contact

[10] Contact

PJA011G716

LABEL,WIRING

Contact

[11] In Stock

PJA142A702

LID BOX Z

[12] Contact

PJA142A504A

COVER

Contact

[13-14] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[14] Contact

PJA129A708

COVER Z

Contact

[15] In Stock

PSA006A039

HOSE SET, DRAIN

[15-17] Contact

PJA008A308S

PARTS SET

Contact

[16] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[17] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

SKU: FDTA501R CONTROL AND PARTS SET Category: Uncategorised
