FDTA140KXE4A CONTROL AND PARTS SET

Name: FDTA140KXE4A CONTROL AND PARTS SET
SKU: FDTA140KXE4A CONTROL AND PARTS SET
Availability: InStock

FDTA140KXE4A CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

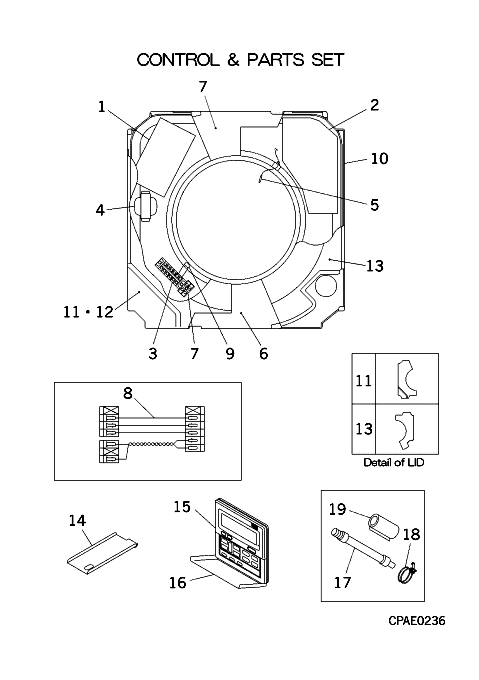

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

PJA505A110ZH

PWB ASSY

Notes: OUT OF PRODUCTION - POWER BOARD - SMALLER PC BOARD - NEAR TRANSFORMER Show Image

[1-10] Contact

PJA501A708H

Contact

[2] In Stock

PJA505A137ZF

PWB ASSY (CONTROL)

Notes: PLUGS INTO SENSORS & DRAIN MOTOR (FM PLUGS INTO BOTH PWB"s)

[3] Contact

SSA561B677C

BLOCK,TERMI

Contact

Notes: TB1

[4] In Stock

SSA554A455

TRANSFORMER

Notes: TRI

[5] In Stock

PJA551A700

SENSOR

Notes: THI-A,R, sensor has 2 plugs - 1 black that plugs into pc board and 1 red plug for sensor Show Image

[6] In Stock

PJA142A703

LID BOX Z

Show Image

[7] Contact

SSA561B683A

BLOCK TERMI

Contact

Notes: TB2

[8] Contact

PJA504A708

WIRING(FM)

Contact

Notes: PWB(CONT.)CNM2,PWB(POWER) CNM1-FMI CNF

[9] Contact

PJD552D003

CAPACITOR A

Contact

[10] Contact

PJA142A700

LID CONTRO

Contact

Notes: BELLMOUTH

[11-12] Contact

PJA142A704F

LID ASSY,CO

Contact

[12] Contact

PJA011G705

LABEL,WIRING

Contact

[13] In Stock

PJA142A702

LID BOX Z

[14] Contact

PJA142A504A

COVER

Contact

[15-16] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[16] Contact

PJA129A708

COVER Z

Contact

[17] In Stock

PSA006A039

HOSE SET, DRAIN

[17-19] Out of Stock

PJA006A317

PARTS SET

Notes: INCL.CLAMP,HOSE INSULATION SET HOSE,DRAIN

[18] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[19] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[20] Contact

PJA011F708J

Contact
