FDTA112KXE4R CONTROL AND PARTS SET

Name: FDTA112KXE4R CONTROL AND PARTS SET
SKU: FDTA112KXE4R CONTROL AND PARTS SET
Availability: InStock

FDTA112KXE4R CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

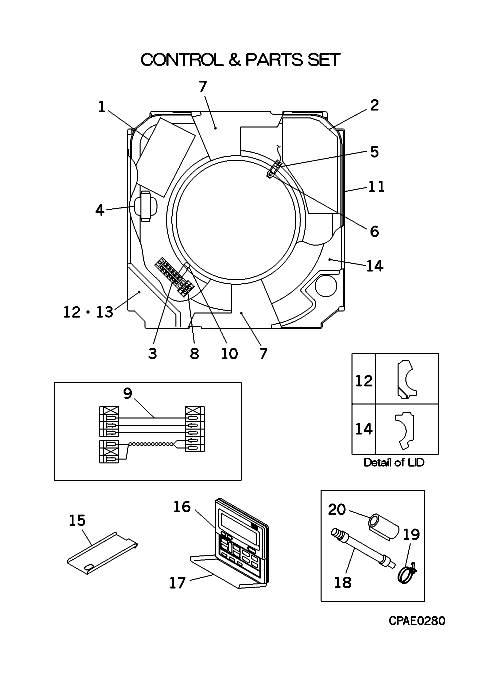

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

PJA505A110ZH

PWB ASSY

Notes: ONLY FOR SUPPLY PARTS, OUT OF PRODUCTION - POWER BOARD - SMALLER PC BOARD - NEAR TRANSFORMER Show Image

[1-11] Contact

PJA501A712G

Contact

Notes: !

[2] In Stock

PJA505A157ZA

PWB ASSY

Notes: ONLY FOR SUPPLY PARTS, CONTROL BOARD - HAS DIP SWITCHES AND SENSOR PLUGS Show Image

[3] Contact

SSA561B717C

Contact

Notes: TB1

[4] In Stock

SSA554A455

TRANSFORMER

Notes: TRI

[5] In Stock

PJA551A700

SENSOR

Notes: THI-A, sensor has 2 plugs - 1 black that plugs into pc board and 1 red plug for sensor Show Image

[6] Contact

PJA129A710

Contact

Notes: FOR THI-A

[7] In Stock

PJA142A703

LID BOX Z

Show Image

[8] Contact

SSA561B718A

Contact

Notes: TB2

[9] Contact

PJA504A708

WIRING(FM)

Contact

Notes: PWB(CONT.)CNM2,PWB(POWER) CNM1-FMI CNF

[10] Contact

PJD552D003

CAPACITOR A

Contact

[11] Contact

PJA142A700

LID CONTRO

Contact

Notes: BELLMOUTH

[12-13] Contact

PJA142A704AB

Contact

[13] Contact

PJA011G720

Contact

Notes: !

[14] In Stock

PJA142A702

LID BOX Z

[15] Contact

PJA142A504A

COVER

Contact

[16-17] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[17] Contact

PJA129A708

COVER Z

Contact

[18] In Stock

PSA006A039

HOSE SET, DRAIN

[18-20] Contact

PJA008A308S

PARTS SET

Contact

[19] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[20] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[21] Contact

PJA011F713H

Contact

Notes: !
