FDT90KXZE1/H CONTROL AND PARTS SET

Name: FDT90KXZE1/H CONTROL AND PARTS SET
SKU: FDT90KXZE1/H CONTROL AND PARTS SET
Availability: InStock

FDT90KXZE1/H CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

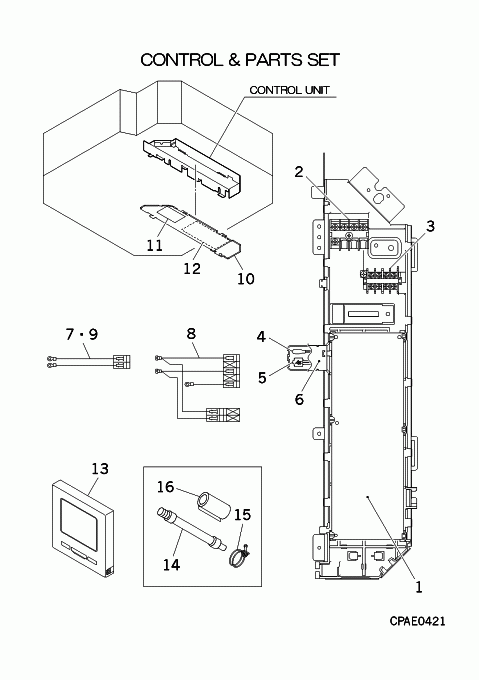

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A266AN

PWB ASSY(MAIN)

Notes: ONLY FOR SUPPLY PARTS

[1-9] Contact

PJF501A019GM

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

PSA551A001GA

SENSOR

Notes: THI-A, Return Air/ LENGTH 28CM Show Image

[5] In Stock

SSA551B017

SENSOR(HUMIDITY)

Notes: HS, SENSOR(HUMIDITY)/ LENGTH 30.5CM Show Image

[6] Contact

PMA129A002

COVER.HOLDER

Contact

[7] In Stock

PJF504A047

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB

[8] Contact

PJG504A007G

WIRING(TB,POWER)

Contact

[9] Contact

PJF504A010J

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[10] In Stock

PJF142A024

LID,CONTROL BOX

[11] Contact

PSA011H046

LABEL,NOTICE

Contact

[12] Contact

PJF011G025

LABEL,WIRING

Contact

Notes: !

[13] Contact

PJZ502A031AC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH

[14] In Stock

PSA423A004A

HOSE ASSY, DRAIN

Notes: LENGTH 18CM Show Image

[14-16] In Stock

PSA008A427

PARTS SET(A)

Notes: Cable ties, washers, drain hose, 2x insulation, carboard temporary measurement.

[15] Contact

V300Y32

HOSE CLAMP

Contact

[16] Contact

SSA153B022BH

INSULATION,PIPE

Contact

[17] Contact

PJF011F074CJ

LABEL,MODEL NAME

Contact

Notes: !

SKU: FDT90KXZE1/H CONTROL AND PARTS SET Category: Uncategorised
