FDT36KXZE1/1 HEAT EXCH. ASSY

Name: FDT36KXZE1/1 HEAT EXCH. ASSY
SKU: FDT36KXZE1/1 HEAT EXCH. ASSY
Availability: InStock

FDT36KXZE1/1 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

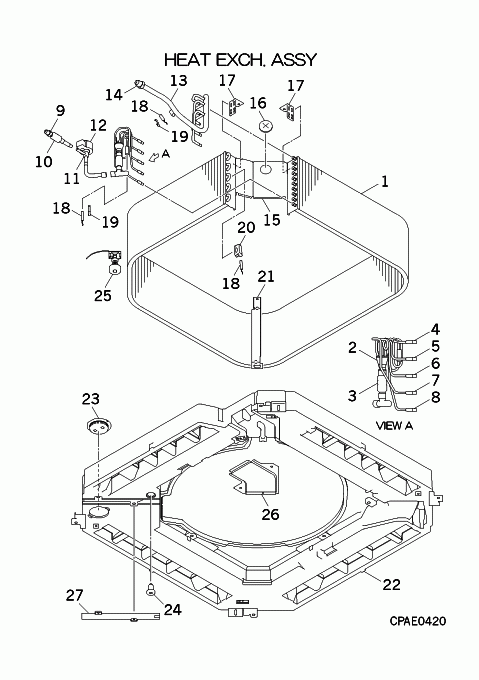

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-20] In Stock

PJF301A033C

HEAT EXCH ASSY(AIR

[2] Contact

SSA315A311C

DISTRIBUTOR

Contact

Notes: Not suitable for this model

[2-8] Contact

PJF315A025A

DISTRIBUTOR ASSY

Contact

[3] In Stock

SSA357A051D

STRAINER

Show Image

[4] Contact

PJF315B015

CAPILLARY

Contact

Notes: !D2.0XD4.0 L240

[5] Contact

PJF315B015A

CAPILLARY

Contact

Notes: !D3.0XD4.0 L120

[6] Contact

PJF315B015B

CAPILLARY

Contact

Notes: !D2.8XD4.0 L240

[7] Contact

PJF315B015C

CAPILLARY

Contact

Notes: !D2.4XD4.0 L240

[8] Contact

PJF315B015D

CAPILLARY

Contact

Notes: !D1.6XD4.0 L400

[9] Contact

SSA323F092

UNION,SOLDER

Contact

[9-10] Contact

PJF321A044A

PIPING ASSY

Contact

[10] In Stock

SSA357A051F

STRAINER

Notes: LENGTH 5.5CM Show Image

[11] In Stock

SSA387F074A

VALVE EXPANSION

Notes: SM Show Image

[12] In Stock

SSA382F228AV

COIL, SOLENOID

Notes: FOR SM, EEV

[13-14] Contact

PJF315D018D

HEADER ASSY,GAS

Contact

Notes: Not suitable for this model

[14] In Stock

SSA323F012B

UNION

Show Image

[15-16] Contact

PJF141A007A

PLATE ASSY,BAFFLE

Contact

[16] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[17] In Stock

PJF116A040

BRACKET(PLATE,SIDE)

Show Image

[18] Out of Stock

PJF551A002K

SENSOR ASSY(TEMP)

Substitute: PSA551A042K Notes: THI-R1,2,3, THI-R1,2,3 - includes three refrigerant (coil) sensors Show Image

[19] Out of Stock

RKJ941F001

SPRING LEAF

Substitute: PSA941F001 Notes: FOR THI-R2,3 Show Image

[20] Contact

PSA937B002

CLAMP,SENSOR

Contact

Notes: FOR THI-R1

[21] Contact

PJF116A041C

BRACKET(HEAT EX)

Contact

[22-24] In Stock

PJF454A007C

PAN ASSY,DRAIN

[23] In Stock

PJF129A086

CAP & NOZZLE(DRAIN

Show Image

[24] In Stock

AHT326A002B

PLUG

Show Image

[25] In Stock

PJF536A003

FLOAT SWITCH

Notes: FS, FLOAT SWITCH/ LENGTH 143.5CM Show Image

[26] Contact

PJF142A007A

COVER

Contact

[27] In Stock

PJF129A083

COVER(DP)

Show Image
