FDQMA28KXE4A HEAT EXCH. ASSY

Name: FDQMA28KXE4A HEAT EXCH. ASSY
SKU: FDQMA28KXE4A HEAT EXCH. ASSY
Availability: InStock

FDQMA28KXE4A HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

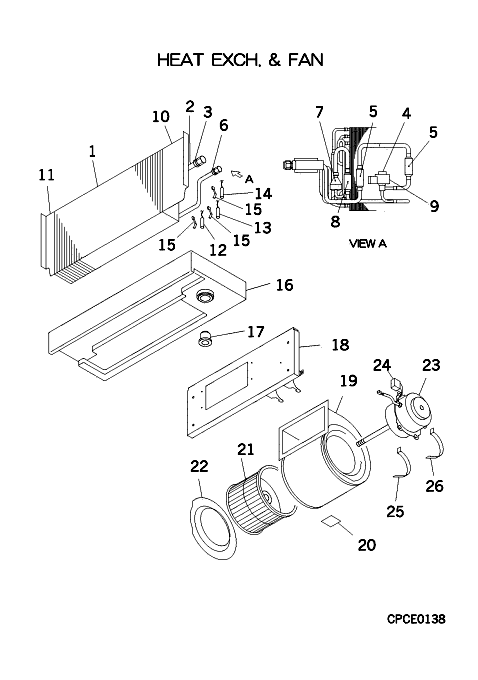

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJC311A110

HEAT EXCH(AIR)

Contact

[1-15] Contact

PJC301A105

HEAT EXCH A

Contact

[2-3] Contact

PJC315D118

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F001C

UNION(SLD)

Contact

[4] In Stock

SSA387F047B

EXP VALVE

Notes: SM, EXPANSION VALVE BODY Show Image

[5] In Stock

SSA357A059B

STRAINER

[6] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[7] Contact

SSA315A255C

DISTRIBUTOR

Contact

[7-8] Contact

PJC315A111

DISTRIBUTOR

Contact

[8] In Stock

SSA357A059T

STRAINER

[9] In Stock

SSA382F228J

COIL SOLENOID

Notes: FOR SM, LENGTH 40CM Show Image

[10] Contact

PJC141A110

PLATE ASSY,BAFFLE(

Contact

[11] Contact

PJC141A112

PLATE ASSY,BAFFLE(

Contact

[12] In Stock

PJA551A005AH

SENSOR

Notes: THI-R1(U-BEND) Show Image

[13] In Stock

PJA551A005AN

SENSOR Z

Notes: THI-R2 (CAPILLARY), THI-R2(CAPILLARY) Show Image

[14] In Stock

PJA551A005AS

SENSOR

Notes: THI-R3(GAS HEADER) Show Image

[15] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[16-17] In Stock

PJC454A108

DRAIN PAN

[17] Contact

SSA326A022

PLUG

Contact

[18] Contact

PJC116A104

CABINET FAN

Contact

[19-20] In Stock

PJC433B100A

CASING

[20] Contact

RSA011H005A

LABEL,NOTIC

Contact

[21] In Stock

SSA431D020A

IMPELLER

[22] In Stock

PFA433B003

SHROUD

[23] In Stock

SSA511T165

MOTOR AC

[24] In Stock

SSA552A497D

CAPACITOR,RUNNING

Notes: 1.6MF 460VAC, 1.6MF 400V Show Image

[25] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[26] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image
