FDQMA28KXE4A CONTROL AND PARTS SET

Name: FDQMA28KXE4A CONTROL AND PARTS SET
SKU: FDQMA28KXE4A CONTROL AND PARTS SET
Availability: InStock

FDQMA28KXE4A CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

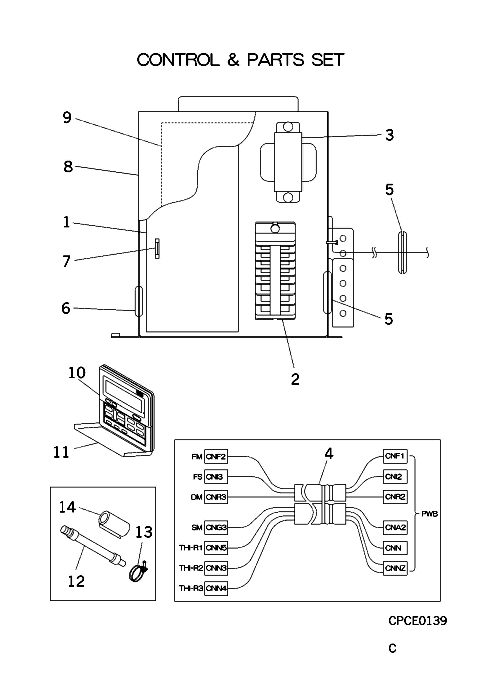

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A138ZC

PWB ASSY

Show Image

[1-7] Contact

PJC501A118D

CONTROL UNIT

Contact

[2] Contact

SSA561B707DG

BLOCK TERMI

Contact

Notes: TB

[3] In Stock

SSA554A454

TRANSFORMER

Notes: TRI Show Image

[4] Contact

PJC504A110B

HARNESS ASSY

Contact

[5] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[6] Contact

S751W20X

GROMMET

Contact

Notes: D25

[7] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[8-9] Contact

PJC142A102J

LID ASSY,CONTROL B

Contact

[9] Contact

PJC011G112

LABEL,WIRING

Contact

[10-11] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[11] Contact

PJA129A708

COVER Z

Contact

[12] In Stock

PSA006A039

HOSE SET, DRAIN

[12-14] Out of Stock

PJA006A317

PARTS SET

Notes: INCL.CLAMP,HOSE, INCL.CLAMP,HOSE INSULATION SET HOSE,DRAIN

[13] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[14] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[15] Contact

PJR011F018B

LABEL,MODEL NAME

Contact

SKU: FDQMA28KXE4A CONTROL AND PARTS SET Category: Uncategorised
