FDKNA301 PANEL ASSY

Name: FDKNA301 PANEL ASSY
SKU: FDKNA301 PANEL ASSY
Availability: InStock

FDKNA301 PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

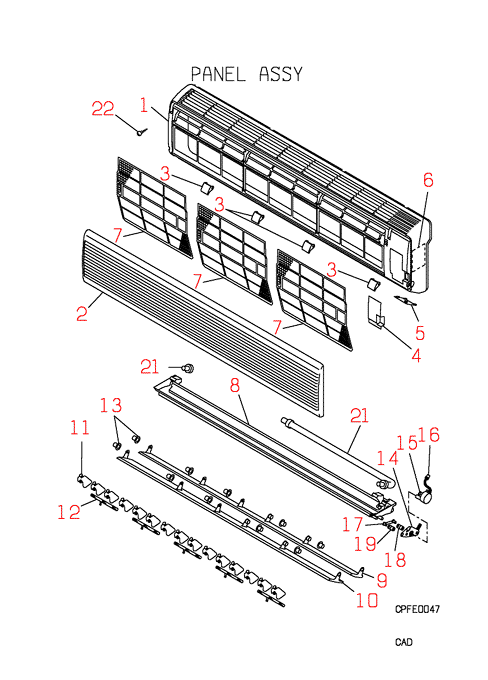

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PHA122A200

PANEL,FRONT

[1-6] Contact

PHA102A204J

PANEL ASSY,

Contact

[2] In Stock

PHA435A202

GRILLE,IN

[3] Contact

PHA129A203

CAP

Contact

Substitute: OUT OF PRODUCTION

[4] Out of Stock

RKS132A001

LID

[5] Contact

PHA133A203B

PLATE ASSY,

Contact

[6] Contact

PHA011G004

Contact

[7] In Stock

PHA437A200

FILTER,AIR

Notes: W319XH348(T2), RETURN AIR/DUST FILTER - SOLD INDIVIDUALLY

[8] Out of Stock

PHA435A204

GRILLE,OUT

Substitute: PHA435A203 Notes: 17 x 16 x 115 x 3KG

[8-21] Out of Stock

PHA435A203

GRILLE,A,OU

[9] In Stock

PHA436A202

FLAP,A

Notes: LOWER

[10] Out of Stock

PHA436A203

FLAP,A

Substitute: OUT OF PRODUCTION Notes: UPPER

[11] Contact

RKR436A305

LOUVER

Contact

[11-12] In Stock

RKR436A302

LOUVER

[12] Contact

RKR129A304

BRACKET

Contact

[13] In Stock

RKR935C001

COLLAR

Notes: ***SOLD INDIVIDUALLY*** Show Image

[14] Contact

RKR129A303

BRACKET

Contact

Substitute: RYD129A007

[14-19] In Stock

RKR144A300

LINK ASSY

Show Image

[15] In Stock

SSA512T017

MOTOR,STEPPING

Notes: FOR FLAP, VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[16] In Stock

RKR504A003

HARNESS

Notes: FOR FLAP MOTOR

[17] In Stock

RKR144A301

LINK

Show Image

[18] Out of Stock

RKR144A003

CLANK

Notes: LOWER

[19] Out of Stock

RKR144A004

CLANK

Notes: UPPER

[20] In Stock

RSA423A001

DRAIN HOSE

[21] In Stock

SSA326A038

PLUG

Show Image

[22] In Stock

SSA913A007A

SCREW,TAP

Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image
