FDKNA301 CONTROL AND PARTS SET

Name: FDKNA301 CONTROL AND PARTS SET
SKU: FDKNA301 CONTROL AND PARTS SET
Availability: InStock

FDKNA301 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

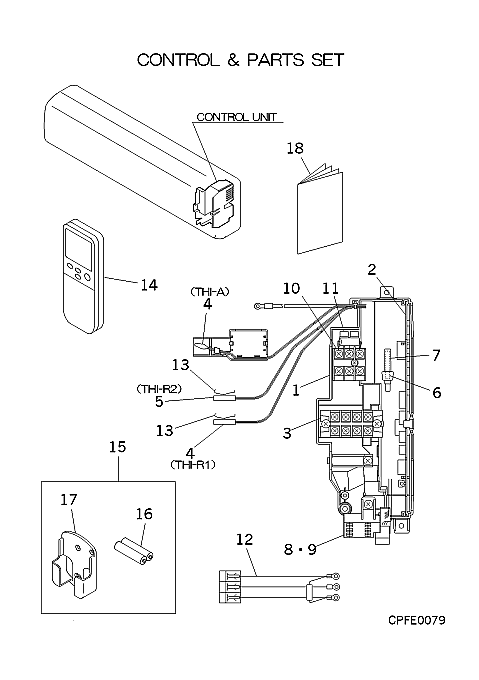

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RKS142A001

CONTROL BOX

Contact

[1-12] Contact

PHA501A218

Contact

[2] Contact

PHA505A018ZG

PWB ASSY

Contact

[3] Contact

SSA561B671B

BLOCK,TERMI

Contact

Notes: TB1

[4] Contact

PJA551A600B

SENSOR

Contact

Notes: THI-A,R1

[5] Contact

PHA551A202A

SENSOR

Contact

Notes: THI-R2

[6] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[7] In Stock

SSA564B059

HOLDER,FUSE

Show Image

[8] Contact

PHA505A011

PWB FDKJ

Contact

[8-9] In Stock

PHA503A202

DISPLAY ASSY

Notes: RECEIVER/DISPLAY BOARD Show Image

[9] Contact

RKS129A003

FRAME,DISPL

Contact

[10] Out of Stock

SSA561B685

BLOCK,TERMI

Notes: TB2

[11] Out of Stock

PJA552F002

CAPACITOR A

Show Image

[12] Contact

PHA504A202A

HARNESS ASSY

Contact

Notes: CNB-TB2,TB2,TB2

[13] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[14] In Stock

RKN502A241D

CONTROL ASSY

Notes: RCN-E1, WIRELESS - RCN-E1 Show Image

[15] Contact

PFA006A203N

PARTS SET

Contact

Substitute: OUT OF PRODUCTION

[16] Contact

RSA549A001

BATTERY

Contact

Substitute: RKH549A500

[17] In Stock

RKR032A002

HOLDER(REMO

Show Image

[18] Contact

PJA012A719

MANUAL,INSTRUCTION

Contact

[19] Contact

PHA011F227H

Contact
