FDKN258H PANEL ASSY

Name: FDKN258H PANEL ASSY
SKU: FDKN258H PANEL ASSY
Availability: InStock

FDKN258H PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

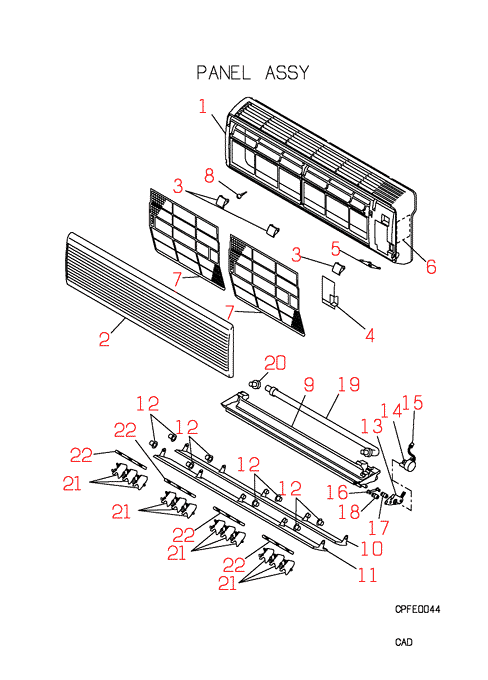

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

RKS122A001B

PANEL FRONT

[1-6] Out of Stock

PHA102A203D

PANEL,FRONT

[2] In Stock

RKS435A001C

GRILLE,INLET

[3] Contact

RKS129A006

CAP

Contact

[4] Out of Stock

RKS132A001

LID

[5] Contact

PHA133A202D

PLATE,DISP

Contact

[6] Contact

PSC011G136A

LABEL,WIRIN

Contact

[7] Out of Stock

RKS437A001

FILTER,AIR

Notes: 1pc ONLY, RETURN AIR FILTER - SOLD INDIVIDUALLY

[8] Contact

SSA913A007B

SCREW TAP

Contact

Notes: 1pc ONLY

[9] Out of Stock

RKS435A003

GRILLE,AIR

[9-22] Contact

PHA435A201

GRILLE,OUT

Contact

Notes: OUT OF PRODUCTION

[10] In Stock

RKS436A001

FLAP(A)

Notes: LOWER

[11] In Stock

RKS436A002

FLAP(B)

Notes: UPPER

[12] In Stock

RKR935C001

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY*** Show Image

[13] In Stock

RKR129A009

BRACKET MOT

Show Image

[13-18] Out of Stock

RKR144A006

LINK,ASSY

[14] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[15] In Stock

RKR504A003

HARNESS

[16] Out of Stock

RKR144A007

LINK

[17] Out of Stock

RKR144A003

CLANK

[18] Out of Stock

RKR144A004

CLANK

[19] In Stock

RSA423A001

DRAIN HOSE

[20] In Stock

SSA326A038

PLUG

Show Image

[21] Out of Stock

RKS436A006

LOUVER

Notes: 1pc ONLY, out of production

[21-22] In Stock

RKS436A005

LOUVER ASSY

Show Image

[22] Contact

RKS129A013

PLATE,CONEC

Contact
