Parts List
Key:
Instock.
Nilstock.
Contact MRE.

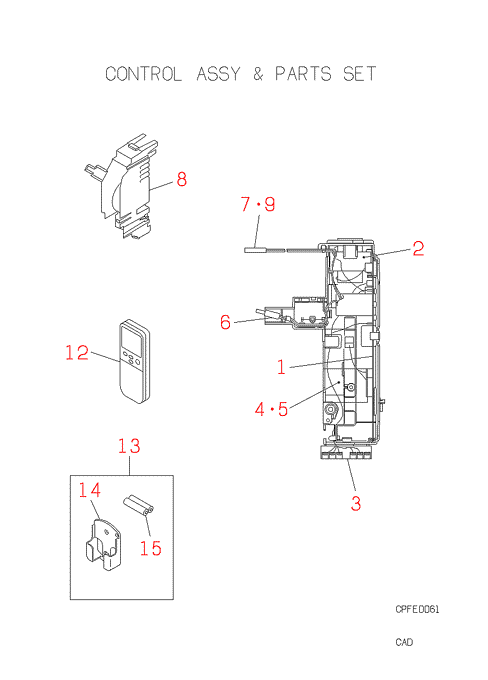

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
In Stock
PHA505A007
PWB ASSY
Notes: ONLY FOR SUPPLY PART
[1-8]
Contact
PHA501A207C
CONTROL ASY
Contact
[2]
Out of Stock
SSA554A357
TRANSFORMER
[3]
Contact
SSA561B686
BLOCK,TERMI
Contact
[4-5]
Out of Stock
PHA503A200A
DISPLAY,ASY

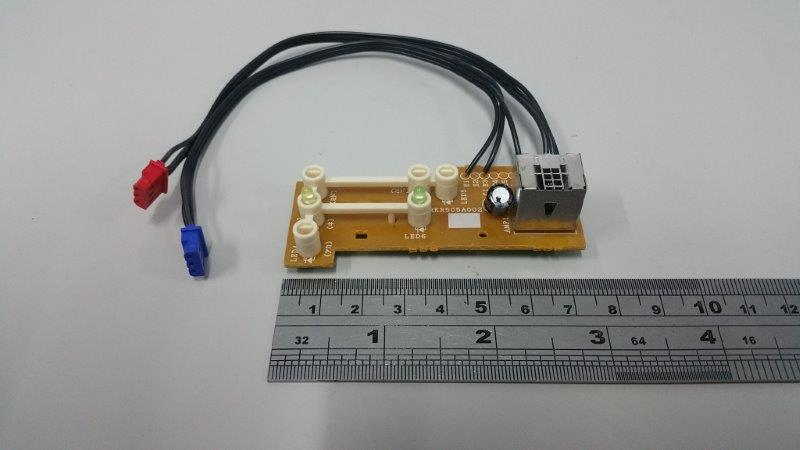

[5]
In Stock
RKR505A002H
PWB,DISPLAY
[6]
Out of Stock
PHA551A200B
SENSOR ASSY

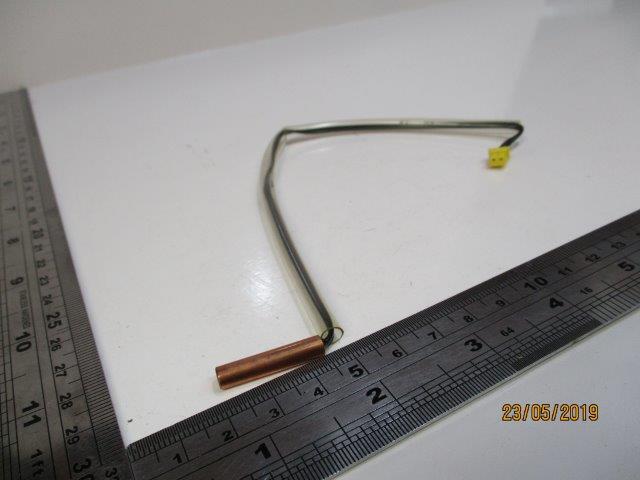

[7]
In Stock
PHA551A201
SENSOR
[8]
Contact
RKR142A200A
BOX CONT
Contact
[9]
Out of Stock
RKJ941F001
SPRING LEAF
Substitute: PSA941F001 Notes: FOR THI-R Show Image
[10]
Out of Stock
PSA012B618
MANUAL 98
[11]
Contact
PSA011F852D
LABEL,MODEL NAME
Contact
[12]
In Stock
RKN502A241H
REMOCON
[13]
Contact
PFA006A220
PARTS SET
Contact
[14]
In Stock
RKR032A002
HOLDER(REMOTE)
[15]
Contact
RSA549A001
BATTERY
Contact
