FDKJ71HKXE2 PANEL ASSY

Name: FDKJ71HKXE2 PANEL ASSY
SKU: FDKJ71HKXE2 PANEL ASSY
Availability: InStock

FDKJ71HKXE2 PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

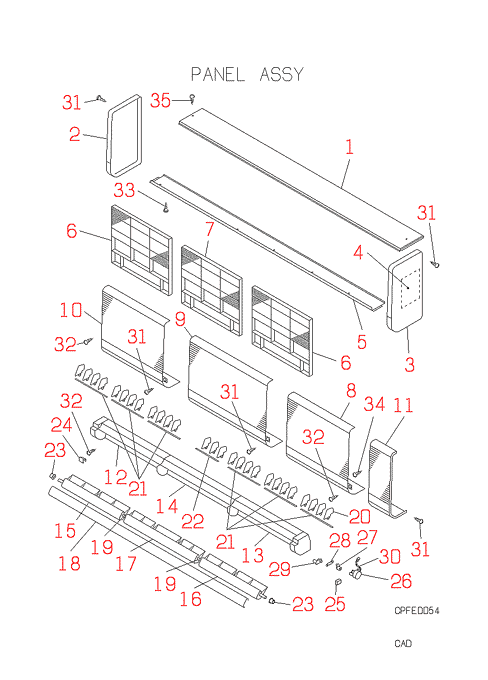

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

PHA124A002B

PANEL TOP

[2] In Stock

PHA123A004

PANEL SIDE

Notes: LEFT

[3] In Stock

PHA123A003

PANEL SIDE

[3-4] Contact

PHA123A005AN

PANEL,SIDE

Contact

Notes: RIGHT

[4] Contact

PSC011G170

LABEL,WIRIN

Contact

[5] Contact

PHA125A001B

BOTTOM PANE

Contact

[6] In Stock

PHA437A002

FILTER

Notes: 1pc ONLY

[7] In Stock

PHA437A002A

FILTTER

Notes: 1pc ONLY, 54 X 33 X 7 X 2KG Show Image

[8] Out of Stock

PHA435A009

GRILLE AIR

Notes: RIGHT

[9] In Stock

PHA435A009B

GRILLE AIR

Notes: CENTER

[10] In Stock

PHA435A009J

GRILLE AIR

Notes: LEFT

[11] Out of Stock

PHA122A003

PANEL

[12] Contact

PHA435A005

GRILLE AIR

Contact

Notes: LEFT

[12-24] Contact

PHA435A011B

GRILLE ASY

Contact

Substitute: PHA435A004B

[12-30] Contact

PHA435A004K

GRILLE,AIR

Contact

[13] Contact

PHA435A006

GRILLE AIR

Contact

Notes: RIGHT

[14] Contact

PHA435A007A

GRILLE AIR

Contact

Notes: CENTER

[15] Contact

PHA436A004

GRILLE,AIR

Contact

Notes: LEFT

[15-19] Contact

PHA436A003B

LOUVER ASY

Contact

[16] Contact

PHA436A005

LOUVER,BLOW(R)

Contact

Notes: RIGHT

[17] Contact

PHA436A006A

LOUVER,BLOW(C)

Contact

Notes: CENTER

[18] Contact

PHA129A004B

CAP

Contact

[19] Contact

PHA935C003

COLLAR

Contact

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[20] Out of Stock

PHA436A002

LOVER

Notes: 1pc ONLY

[21] Out of Stock

PHA129A003

KONAKUTNG

[22] Out of Stock

PHA129A003A

KONAKUTNG

[23] Contact

PHA129A002

BUSH

Contact

[24] In Stock

PHA129A005

CAP

Show Image

[25] Out of Stock

PFA523J001C

SWITCH MICR

[26] In Stock

SSA511J303B

MOTOR AC

Notes: FOR FLAP, STEPPING MOTOR Show Image

[27] Contact

PFA144A200

LINK

Contact

[28] Contact

PHA144A003

LINK

Contact

[29] Contact

PHA144A004

LINK

Contact

[30] Contact

PFA504A231F

HARNE ASY

Contact

Notes: FOR FLAP MOTOR

[31] Contact

W011D04X008K

SCREW BRACK

Contact

Notes: 4X8, 1pc ONLY

[32] Contact

W011D04X012K

SCREW TAP

Contact

Notes: 4X12, 1pc ONLY

[33] Contact

SSA913A010A

SCREW TAP

Contact

Notes: 4X8, 1pc ONLY

[34] Contact

SSA913C018A

SCREW TAP

Contact

Notes: 4X10, 1pc ONLY

[35] Contact

W010D04X012K

SCREW

Contact

Notes: 4X12, 1pc ONLY

SKU: FDKJ71HKXE2 PANEL ASSY Category: Uncategorised
