FDKJ71HKXE2 HEAT EXCH. AND FAN

Name: FDKJ71HKXE2 HEAT EXCH. AND FAN
SKU: FDKJ71HKXE2 HEAT EXCH. AND FAN
Availability: InStock

FDKJ71HKXE2 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

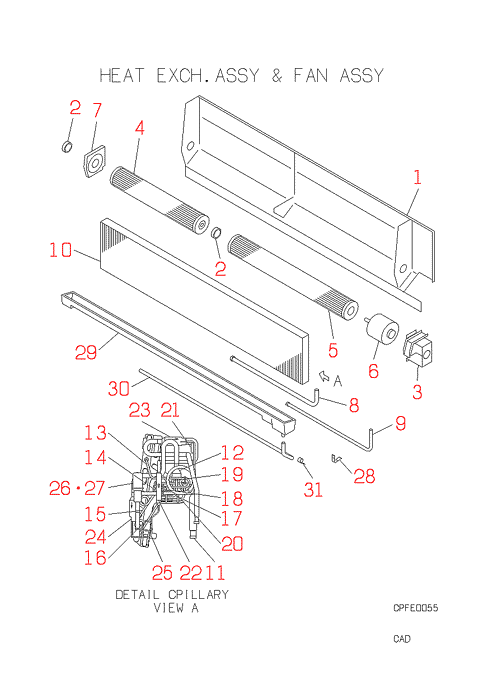

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PHA101A002D

FRAME

Contact

[2] In Stock

SSA923C001

BEARING

Show Image

[3] Contact

PHA116A046

BRACKET MO

Contact

[4] In Stock

SSA431G021

IMPELLER

Notes: RIGHT

[5] In Stock

SSA431G020

IMPELLER

[6] Out of Stock

SSA511B047K

MOTOR

Substitute: OUT OF PRODUCTION Notes: FOR IMPELLER, OUT OF PRODUCTION - NO ALTERNATIVES

[7] In Stock

RKG153C001

INSULATION

Show Image

[8] Contact

PHA321A011

PIPING GS

Contact

Notes: FLEXIBLE

[8-26] Contact

PHA301A010J

HEAT,EX,AIR

Contact

[9] Contact

PHA321A023A

PIPING

Contact

Notes: LIQUID

[10] Contact

PHA311A002A

HEAT,EX,AIR

Contact

[10-26] Contact

PHA301A011G

HEAT,EX,AIR

Contact

[11] Contact

PHA315D015A

HEADER ASSY

Contact

[12] Out of Stock

SSA315A252A

DISTRIBUTOR

[12-20] Contact

PHA315B073B

DISTRIBUTOR

Contact

[12-26] Contact

PHA387F003F

VALVE ASSY

Contact

[13] Contact

PHA315B074

CAPILARY,A

Contact

Notes: !D1.5XD2.5 L150

[14] Contact

PHA315B075

CAPILARY,A

Contact

Notes: !D1.5XD2.5 L150

[15] Contact

PHA315B076

CAPILARY,A

Contact

Notes: !D1.5XD2.5 L150

[16] Contact

PHA315B077

CAPILARY,A

Contact

Notes: !D1.5XD2.5 L150

[17] Contact

PHA315B078

CAPILARY,A

Contact

Notes: !D2.6XD4.0 L70

[18] Contact

PHA315B079

CAPILARY,A

Contact

Notes: !D2.6XD4.0 L70

[19] Contact

PHA315B080

CAPILARY,A

Contact

Notes: !D2.6XD4.0 L125

[20] Contact

PHA315B081

CAPILARY,A

Contact

Notes: !D2.6XD4.0 L80

[21] Contact

PHA315B063A

CAPILLARY

Contact

Notes: !D2.8XD4.0 L205

[21-23] Contact

PHA321A088A

PIPING(GAS)

Contact

[22] In Stock

SSA385A029

VALVE

Notes: VALVE Show Image

[23] Contact

SSA357A008BG

STRAINER

Contact

[24] Contact

SSA357A008BH

STRAINER

Contact

[24-25] Contact

PHA357A003

STRAINER A

Contact

[25] Contact

PHA315B174

CAPILLARY

Contact

Notes: !D1.0XD2.0 L500

[26] In Stock

SSA387F021

EXP HKXA

Show Image

[27] In Stock

PHA382F002

COIL SOLENO

Notes: LENGTH 36CM Show Image

[28] Contact

RKG116A012

CLAMP

Contact

[29-30] In Stock

PHA454A008B

DRAIN PAN

[30] In Stock

SSA423A010A

HOSE DRAIN

[31] Contact

SSA937A056

CLAMP

Contact

SKU: FDKJ71HKXE2 HEAT EXCH. AND FAN Category: Uncategorised
