FDKA71KXE4 HEAT EXCH. AND FAN

Name: FDKA71KXE4 HEAT EXCH. AND FAN
SKU: FDKA71KXE4 HEAT EXCH. AND FAN
Availability: InStock

FDKA71KXE4 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

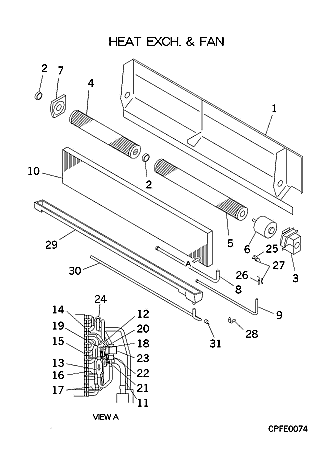

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PHA101A002D

FRAME

Contact

[2] In Stock

SSA923C001

BEARING

Show Image

[3] Contact

PHA116A046

BRACKET MO

Contact

[4] In Stock

SSA431G020

IMPELLER

Notes: LEFT

[5] In Stock

SSA431G021

IMPELLER

Notes: RIGHT

[6] Out of Stock

SSA511B047K

MOTOR

Substitute: OUT OF PRODUCTION Notes: FOR IMPELLER, OUT OF PRODUCTION - NO ALTERNATIVES

[7] In Stock

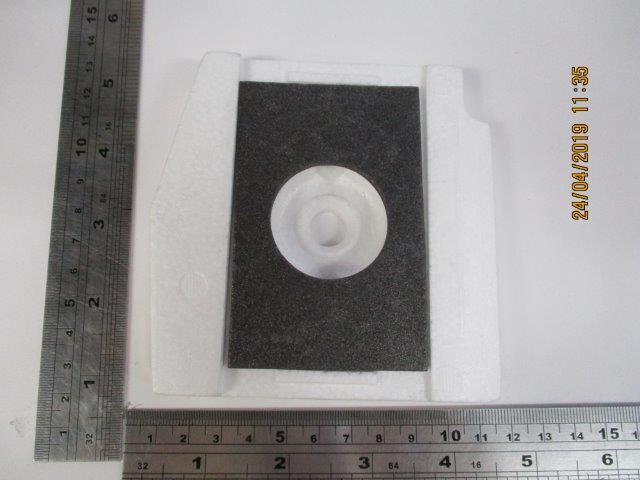

RKG153C001

INSULATION

Show Image

[8] Contact

PHA321A011C

PIPING ASSY(G)

Contact

[8-27] Contact

PHA301A225

HEAT EXCH A

Contact

[9] Contact

PHA321A023C

PIPE ASSY(L)

Contact

[10] Contact

PHA311A002A

HEAT,EX,AIR

Contact

[10-24] Contact

PHA301A226

HEAT EXCH A

Contact

[11] Contact

PHA315D215

HEADER ASSY

Contact

[12] Out of Stock

SSA315A252A

DISTRIBUTOR

[12-21] Contact

PHA315A209

DISTRIBUTOR

Contact

[13] In Stock

SSA357A059T

STRAINER

[14] Contact

PHA315B074

CAPILARY,A

Contact

Notes: !D1.5XD2.5 L150

[15] Contact

PHA315B075

CAPILARY,A

Contact

Notes: !D1.5XD2.5 L150

[16] Contact

PHA315B076

CAPILARY,A

Contact

Notes: !D1.5XD2.5 L150

[17] Contact

PHA315B077

CAPILARY,A

Contact

Notes: !D1.5XD2.5 L150

[18] Contact

PHA315B078

CAPILARY,A

Contact

Notes: !D2.6XD4.0 L70

[19] Contact

PHA315B079

CAPILARY,A

Contact

Notes: !D2.6XD4.0 L70

[20] Contact

PHA315B080

CAPILARY,A

Contact

Notes: !D2.6XD4.0 L125

[21] Contact

PHA315B081

CAPILARY,A

Contact

Notes: !D2.6XD4.0 L80

[22] Contact

SSA387F035A

VALVE,BODY(

Contact

Notes: SM

[23] In Stock

SSA382F228J

COIL SOLENOID

Notes: FOR SM, LENGTH 40CM Show Image

[24] In Stock

SSA357A059B

STRAINER

[25] Contact

PJA551A005BD

SENSOR

Contact

Notes: THI-R2, OUT OF PRODUCTION

[26] Contact

PJA551A005BF

SENSOR

Contact

Notes: THI-R3, OUT OF PRODUCTION

[27] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[28] Contact

RKG116A012

CLAMP

Contact

[29-30] In Stock

PHA454A008B

DRAIN PAN

[30] In Stock

SSA423A010A

HOSE DRAIN

[31] Contact

SSA937A056

CLAMP

Contact
