FDKA71KXE4 CONTROL AND PARTS SET

Name: FDKA71KXE4 CONTROL AND PARTS SET
SKU: FDKA71KXE4 CONTROL AND PARTS SET
Availability: InStock

FDKA71KXE4 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

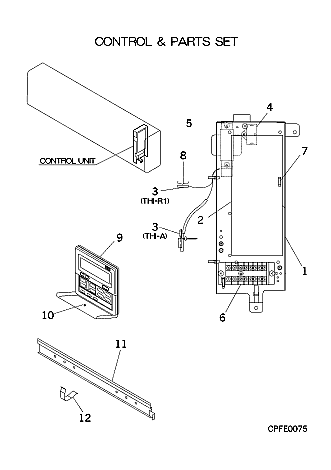

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PHA142A011D

CONTROL BOX

Contact

[1-7] Contact

PHA501A222

CONTROL UNIT

Contact

[2] In Stock

PJA505A138ZD

PWB ASSY

Show Image

[3] Contact

PHA551A008

SENSOR ASSY

Contact

Notes: THI-A,R1, OUT OF PRODUCTION

[4] Out of Stock

SSA552A311

CAPACITOR

Notes: CF1

[5] In Stock

SSA554A454

TRANSFORMER

Notes: TRI Show Image

[6] Contact

SSA561B707DG

BLOCK TERMI

Contact

Notes: TB

[7] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[8] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[9-10] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[10] Contact

PJA129A708

COVER Z

Contact

[11] Contact

RKG032A001B

HOLDER

Contact

[11-12] Contact

PHA008A078M

PARTS STAND

Contact

[12] Contact

RKG116A012

CLAMP

Contact

[13] Contact

PHA011F226G

LABEL,MODEL NAME

Contact

SKU: FDKA71KXE4 CONTROL AND PARTS SET Category: Uncategorised
