FDK71KXE6 HEAT EXCH. AND FAN

Name: FDK71KXE6 HEAT EXCH. AND FAN
SKU: FDK71KXE6 HEAT EXCH. AND FAN
Availability: InStock

FDK71KXE6 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

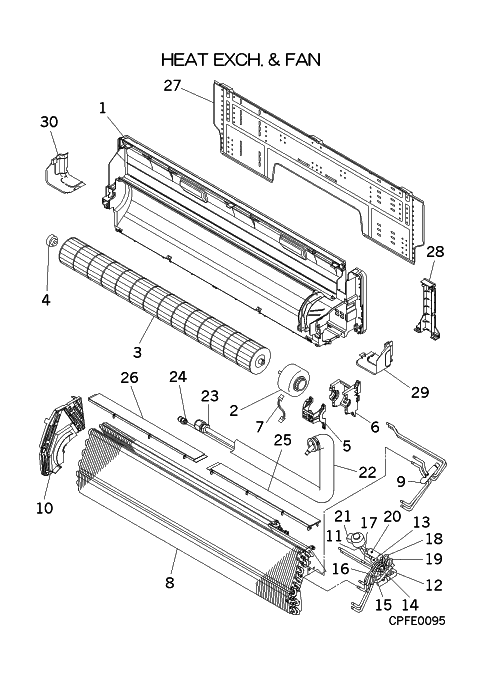

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKW111A200B

BASE ASSY

[2] In Stock

SSA512T118A

MOTOR, DC

Notes: FOR IMPELLER, COMES WITH HARNESS Show Image

[3] In Stock

SSA431G043A

IMPELLER

Notes: FAN BARREL / FAN SCROLL - INDOOR Show Image

[4] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[5] In Stock

RKW129A201

BRACKET,MOT

Show Image

[6] In Stock

RKW129A202

BRACKET,MOT

[7] In Stock

RKS504A601C

HARNESS ASSY

Notes: FOR FAN MOTOR

[8-20] Contact

PHA301A301

HEAT EXCH ASSY(AIR

Contact

[8-26] Contact

PHA301A300A

HEAT EXCH ASSY(AIR

Contact

[9] Contact

PHA315D300

HEADER ASSY

Contact

Notes: !

[10] Contact

PHA129A304

BRACKET(L)

Contact

[11] In Stock

SSA387F047B

EXP VALVE

Notes: SM, EXPANSION VALVE BODY Show Image

[12] Contact

SSA315A252D

DISTRIBUTOR

Contact

[12-19] Contact

PHA315A300

DISTRIBUTOR ASSY

Contact

[13] In Stock

SSA357A005AC

STRAINER

Show Image

[14] Contact

PHA315B234

CAPILLARY

Contact

Notes: !D3.0XD4.0 L50

[15] Contact

PHA315B235

CAPILLARY

Contact

Notes: !D2.6XD4.0 L130

[16] Contact

PHA315B236

CAPILLARY

Contact

Notes: !D2.6XD4.0 L110

[17] Contact

PHA315B237

CAPILLARY

Contact

Notes: !D2.0XD4.0 L70

[18] Contact

PHA315B238

CAPILLARY

Contact

Notes: !D1.8XD4.0 L250

[19] Contact

PHA315B239

CAPILLARY

Contact

Notes: !D1.8XD4.0 L150

[20] In Stock

SSA357A005A

STRAINER

Show Image

[21] In Stock

SSA382F210H

COIL

Notes: FOR SM

[22-24] Contact

PHA321A406B

PIPE ASSY

Contact

[23] In Stock

SSA323F012F

UNION SOLDR

Notes: GAS, UNION SOLDR/ LENGTH 3.5CM Show Image

[24] In Stock

SSA323F088

UNION(SLD)

Notes: FOR GAS, LENGTH 2.6CM Show Image

[25] Contact

RKW129A219A

PLATE ASSY,BAFFLE(

Contact

[26] Contact

RKW129A220

PLATE ASSY,

Contact

[27] In Stock

RKW032A200A

PLATE , INSTALLATION

Notes: BACKING PLATE

[28] In Stock

RKW129A212

COVER(PIPE)

Show Image

[29] In Stock

RKW132A200

LID(R)

Show Image

[30] In Stock

RKW132A201

LID(L)

Show Image

SKU: FDK71KXE6 HEAT EXCH. AND FAN Category: Uncategorised
