FDK71KXE6 CONTROL AND PARTS SET

Name: FDK71KXE6 CONTROL AND PARTS SET
SKU: FDK71KXE6 CONTROL AND PARTS SET
Availability: InStock

FDK71KXE6 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

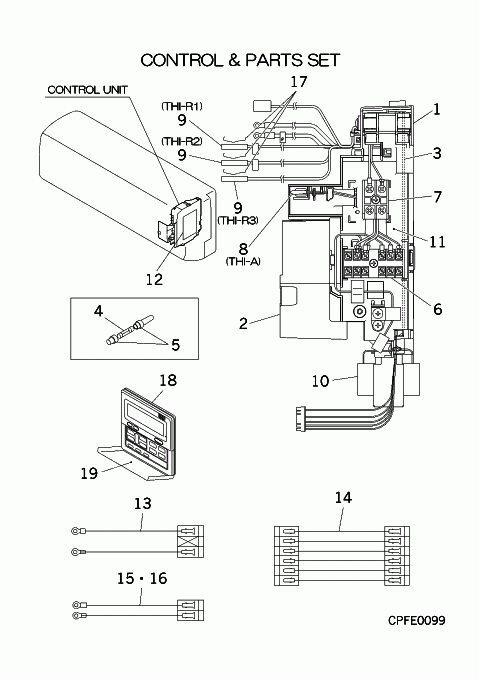

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PHA142A201

BOX,CONTROL(R)

Contact

[1-16] In Stock

PHA501A259BK

CONTROL ASSY

Notes: NOT FOR SALE

[2] Contact

PHA142A202A

BOX,CONTROL(L)

Contact

[3-5] In Stock

PHA505A032A

PWB ASSY

Show Image

[4] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[5] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[6] Contact

SSA561B686F

BLOCK,TERMI

Contact

Notes: TB1

[7] Contact

SSA561B683C

BLOCK,TERMINAL

Contact

Notes: TB2

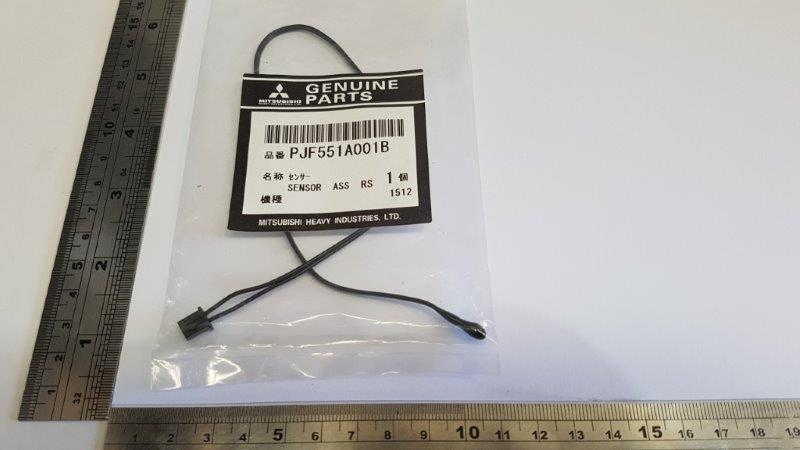

[8] In Stock

PJF551A001B

SENSOR ASSY

Notes: THI-A Show Image

[9] In Stock

PJF551A002A

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3 Show Image

[10] In Stock

SSA554A493

TRANSFORMER

Notes: TR Show Image

[11] Contact

PHA132A202A

LID,CONTROL

Contact

[12] Contact

PHA011G020

LABEL,WIRING

Contact

[13] Contact

PJF504A006A

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[14] Out of Stock

PFA504A619B

WIRING(EEV)

Notes: CNA2 EEV- CNA PWB, CNA2 EEV-CNA PWB

[15] Contact

PJF504A010B

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB, TB2 A,TB2 B-CNK1 PWB

[16] Contact

PHA504A211

HARNESS ASSY

Contact

Notes: CNU-TB 1,TB 2

[17] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[18-19] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E3, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[19] Contact

PJA129A708

COVER Z

Contact

[20] Contact

PHA011F273G

LABEL,MODEL NAME

Contact

SKU: FDK71KXE6 CONTROL AND PARTS SET Category: Uncategorised
