FDK56KXE6F/1 CONTROL AND PARTS SET

Name: FDK56KXE6F/1 CONTROL AND PARTS SET
SKU: FDK56KXE6F/1 CONTROL AND PARTS SET
Availability: InStock

FDK56KXE6F/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

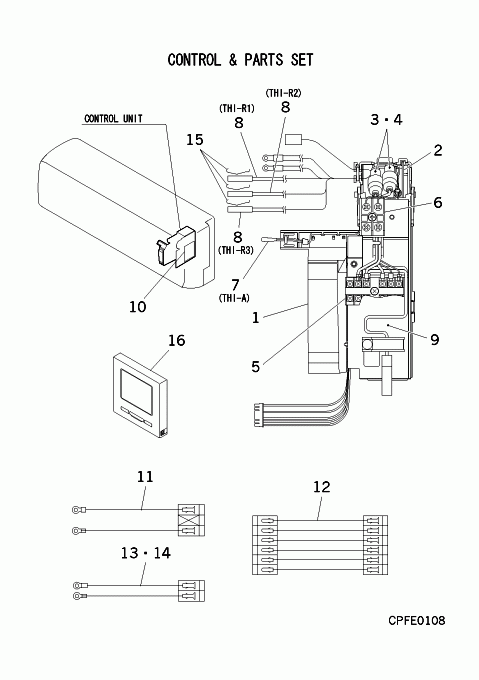

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

PHA142A200

BOX CONTRO

[1-14] Contact

PHA501A278BH

Contact

[2-4] In Stock

PHA505A035G

PWB ASSY

[3] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[4] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[5] Contact

SSA561B686F

BLOCK,TERMI

Contact

Notes: TB1

[6] Contact

SSA561B683C

BLOCK,TERMINAL

Contact

Notes: TB2

[7] In Stock

PJF551A001A

SENSOR

Notes: THI-A

[8] In Stock

PJF551A002A

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3 Show Image

[9] In Stock

PHA132A001A

LID,CONTROL

[10] Contact

PHA011G023

LABEL,WIRING

Contact

[11] Contact

PJF504A006C

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB

[12] Out of Stock

PFA504A619B

WIRING(EEV)

Notes: CNA2 EEV- CNA PWB, CNA2 EEV-CNA PWB

[13] Contact

PJF504A010D

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[14] In Stock

PHA504A211A

HARNESS ASSY(CNU)

Notes: CNU- TB 1,TB 2 Show Image

[15] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[16] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[17] Contact

PHA011F293F

Contact

SKU: FDK56KXE6F/1 CONTROL AND PARTS SET Category: Uncategorised
