FDK36KXZE1/F HEAT EXCH. AND CONTROL

Name: FDK36KXZE1/F HEAT EXCH. AND CONTROL
SKU: FDK36KXZE1/F HEAT EXCH. AND CONTROL
Availability: InStock

FDK36KXZE1/F HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

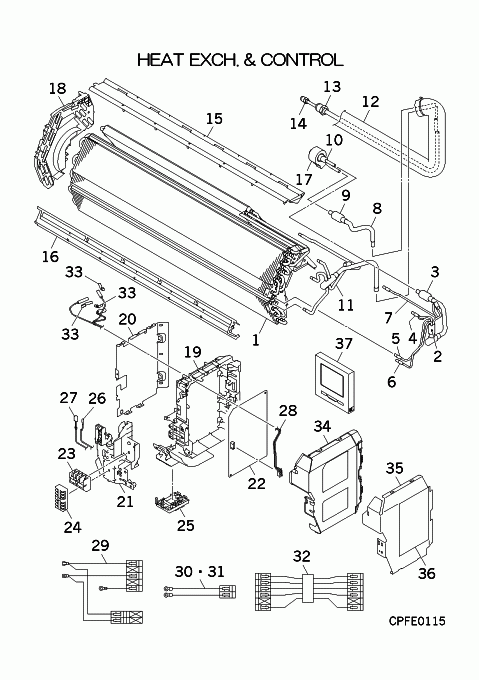

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-18] In Stock

PHA301A406

HEAT EXCH ASSY(AIR

[2] Contact

RKX315A003

DISTRIBUTOR

Contact

Notes: !

[2-7] Contact

PHA315A403

DISTRIBUTOR ASSY

Contact

[3] In Stock

SSA357A051B

STRAINER

Show Image

[4] Contact

PHA315B402

CAPILLARY(1)

Contact

Notes: !D3.0XD4.0 L100

[5] Contact

PHA315B403

CAPILLARY(2)

Contact

Notes: !D3.0XD4.0 L200

[6] Contact

PHA315B404

CAPILLARY(3)

Contact

Notes: !D3.0XD4.0 L200

[7] Contact

PHA315B405A

CAPILLARY(4)

Contact

Notes: !D2.0XD4.0 L360

[8-9] Contact

PHA321A437

PIPING ASSY

Contact

[9] In Stock

SSA357A051B

STRAINER

Show Image

[10] Out of Stock

SSA387F047

VALVE EXP

Notes: SM, EEV - VALVE BODY Show Image

[11] Contact

PHA315D403

HEADER ASSY,GAS

Contact

Notes: !

[12-14] Contact

RLF321A001A

PIPE ASSY

Contact

[13] Out of Stock

SSA323F088B

UNION(SLD)

Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image

[14] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[15] Contact

RLF129A105

PLATE,BAFFLE

Contact

[16] In Stock

RLF129A106

SEAL

[17] In Stock

SSA382F228BM

COIL, SOLENOID

Notes: FOR SM

[18] Contact

RLF129A119

BRACKET ASSY(L)

Contact

Notes: !

[19] Contact

RLF142A101

BOX,CONTROL

Contact

[19-20] In Stock

RLF142A100

BOX ASSY CONTROL

Notes: ! Show Image

[20] Contact

RLF132A100

COVER,CONTROL

Contact

[21] Contact

RLF129A107

COVER,BEND

Contact

[22] In Stock

PHA505A038AC

PWB ASSY

Notes: ONLY FOR SUPPLY PARTS

[23] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[24] Contact

SSA561B686J

BLOCK,TERMINAL

Contact

Notes: TB2

[25] Contact

RLF129A117

HOLDER,DISPLAY

Contact

[26] In Stock

PSA551A001GB

SENSOR ASSY

Notes: THI-A, LENGTH 24.8CM Show Image

[27] In Stock

SSA551B017C

SENSOR(HUMIDITY)

Notes: HS, HUMIDITY SENSOR Show Image

[28] In Stock

PJF551A002A

SENSOR ASSY(TEMP)

Notes: THI-R, THI-R1,2,3 Show Image

[29] Contact

PJG504A007H

WIRING(TB,POWER)

Contact

[30] Out of Stock

PJF504A047A

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB

[31] Contact

PHA504A400

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[32] In Stock

PHA504A408

WIRING(FM)

Notes: CNM1 PWB- CNF1

[33] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[34] Contact

RLF132A104

LID,CONTROL

Contact

[34-36] In Stock

PHA142A400F

LID ASSY,CONTROL

Notes: !

[35] Contact

RLF142A105

LID,CONTROL

Contact

[36] Contact

PHA011G402C

LABEL,WIRING

Contact

Notes: !

[37] Contact

PJZ502A031AC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH

[38] Contact

PHA011F412C

LABEL,MODEL NAME

Contact

Notes: !
