FDK36KXE6F/1 HEAT EXCH. AND FAN

Name: FDK36KXE6F/1 HEAT EXCH. AND FAN
SKU: FDK36KXE6F/1 HEAT EXCH. AND FAN
Availability: InStock

FDK36KXE6F/1 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

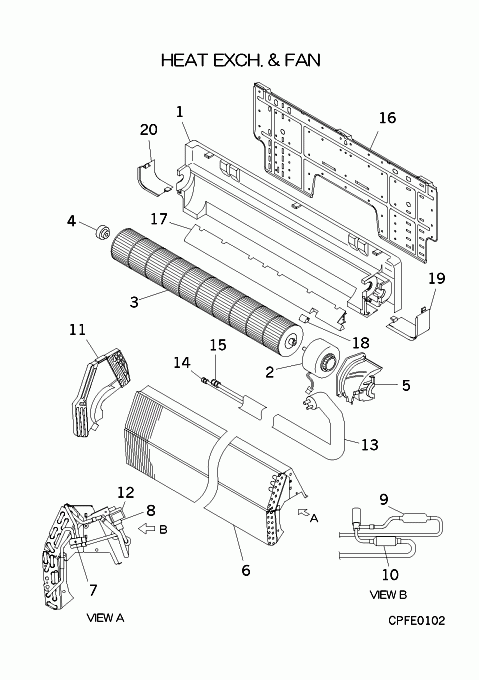

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PHA111A203C

BASE ASSY

[2] In Stock

SSA512T149

MOTOR,DC

Notes: FOR IMPELLER, COMES WITH HARNESS Show Image

[3] In Stock

SSA431G040A

IMPELLER

Notes: FAN BARREL

[4] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[5] In Stock

RKT129A400A

COVER,MOTOR

[6-11] Contact

PHA301A238A

HEAT EXCH ASSY(AIR

Contact

Notes: NOT AVAILABLE - NEED TO ORDER PHA301A237B

[6-15] In Stock

PHA301A237C

HEAT EXCH ASSY(AIR

[7] Contact

PHA315D219A

HEADER ASSY

Contact

[8] In Stock

SSA387F047B

EXP VALVE

Notes: SM, EXPANSION VALVE BODY Show Image

[9] In Stock

SSA357A005A

STRAINER

Show Image

[10] In Stock

SSA357A005C

STRAINER

Show Image

[11] Contact

PHA129A305

BRACKET(L)

Contact

[12] In Stock

SSA382F210R

COIL,SOLENO

Notes: FOR SM Show Image

[13-15] Contact

PHA321A394D

PIPE ASSY

Contact

[14] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[15] Out of Stock

SSA323F088B

UNION(SLD)

Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image

[16] In Stock

RKT032A400A

PLATE,INSTA

[17-18] In Stock

RKT132A752

LID ASSY

[18] In Stock

RKT129A753

CAP

[19] In Stock

RKT132A401B

LID,R

[20] In Stock

RKT132A402B

LID,L

Notes: Cool White Show Image
