FDK28KXZE1-W/A HEAT EXCH. AND CONTROL

Name: FDK28KXZE1-W/A HEAT EXCH. AND CONTROL
SKU: FDK28KXZE1-W/A HEAT EXCH. AND CONTROL
Availability: InStock

FDK28KXZE1-W/A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

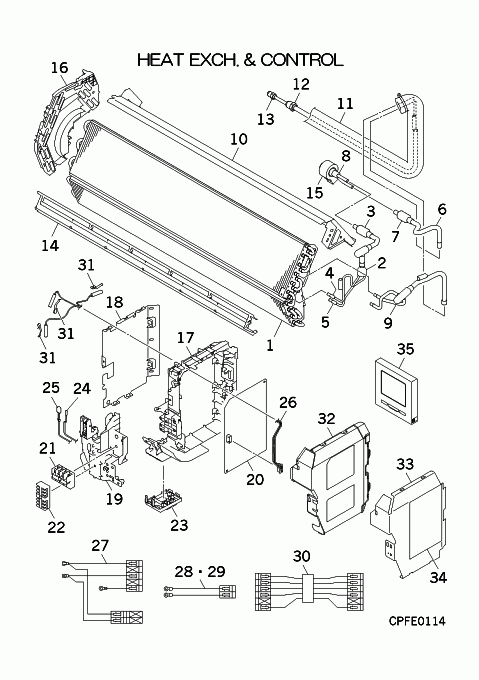

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-16] In Stock

PHA301A414

HEAT EXCH ASSY(AIR)

[2] Contact

RSA315A004B

DISTRIBUTOR

Contact

Notes: ?

[2-5] Contact

PHA315A410

DISTRIBUTOR ASSY

Contact

[3] In Stock

SSA357A051B

STRAINER

Show Image

[4] Contact

PHA315B400A

CAPILLARY(1)

Contact

Notes: ?f2.8xf4.0 L200

[5] Contact

PHA315B416

CAPILLARY(2)

Contact

Notes: ?f2.8xf4.0 L120

[6-7] Contact

PHA321A511

PIPING ASSY

Contact

[7] In Stock

SSA357A051B

STRAINER

Show Image

[8] In Stock

SSA387F086

VALVE,BODY(EXP)

Notes: SM

[9] Contact

PHA315D402

HEADER ASSY,GAS

Contact

Notes: ?

[10] Contact

PHA141A403

PLATE ASSY,BAFFLE

Contact

[11-13] Contact

RLF321A001

PIPE ASSY

Contact

[12] In Stock

SSA323F088

UNION(SLD)

Notes: FOR GAS, LENGTH 2.6CM Show Image

[13] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[14] In Stock

RLF129A106

SEAL

[15] In Stock

SSA382F228BM

COIL, SOLENOID

Notes: FOR SM

[16] Contact

RLF129A119

BRACKET ASSY(L)

Contact

Notes: ?

[17] Contact

RLF142A101

BOX,CONTROL

Contact

[17-18] In Stock

RLF142A100

BOX ASSY CONTROL

Notes: ? Show Image

[18] Contact

RLF132A100

COVER,CONTROL

Contact

[19] Contact

RLF129A107

COVER,BEND

Contact

[20] In Stock

PHA505A038AH

PWB ASSY

Notes: ONLY FOR SUPPLY PARTS

[21] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[22] Contact

SSA561B686J

BLOCK,TERMINAL

Contact

Notes: TB2

[23] Contact

RLF129A117

HOLDER,DISPLAY

Contact

[24] In Stock

PSA551A001GB

SENSOR ASSY

Notes: THI-A, LENGTH 24.8CM Show Image

[25] In Stock

SSA551B017C

SENSOR(HUMIDITY)

Notes: HS, HUMIDITY SENSOR Show Image

[26] In Stock

PJF551A002A

SENSOR ASSY(TEMP)

Notes: THI-R, THI-R1,2,3 Show Image

[27] Contact

PJG504A007H

WIRING(TB,POWER)

Contact

[28] Out of Stock

PJF504A047A

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB

[29] Contact

PHA504A400

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[30] In Stock

PHA504A408

WIRING(FM)

Notes: CNM1 PWB- CNF1

[31] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[32] Contact

RLF132A104

LID,CONTROL

Contact

[32-34] In Stock

PHA142A400F

LID ASSY,CONTROL

Notes: ?

[33] Contact

RLF142A105

LID,CONTROL

Contact

[34] Contact

PHA011G402C

LABEL,WIRING

Contact

Notes: ?

[35] Contact

PJZ502A031AC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH

[36] Contact

PHA011F417BB

LABEL,MODEL NAME

Contact

Notes: ?

SKU: FDK28KXZE1-W/A HEAT EXCH. AND CONTROL Category: Uncategorised
