FDK22KXE6D PANEL ASSY

Name: FDK22KXE6D PANEL ASSY
SKU: FDK22KXE6D PANEL ASSY
Availability: InStock

FDK22KXE6D PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

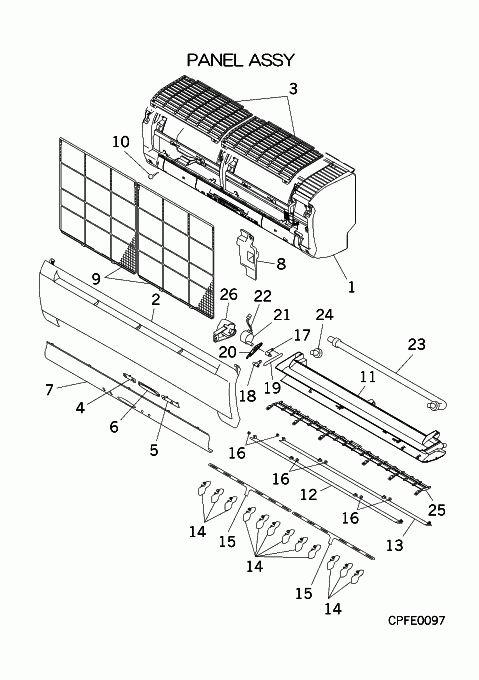

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKT122A600

PANEL,FRONT

[1-9] Contact

PHA102A207A

PANEL ASSY,FRONT

Contact

Substitute: OUT OF PRODUCTION Notes: NOT AVAILABLE 8/12/14

[2] In Stock

RKT435A600K

GRILLE,INLET

Show Image

[3] In Stock

RKT435A601

GRILLE,OUT

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[4] Contact

RKT133A601

LENS(L)

Contact

[5] Contact

RKT133A602A

LENS(R)

Contact

[6] Contact

RKT133A750

PLATE,ORNAM

Contact

[7] In Stock

RKT133A751F

PLATE,DISPLAY

[8] In Stock

PHA132A205A

LID(TERMINAL)

Show Image

[9] In Stock

RKT437A600

FILTER

Notes: 1pc ONLY, RETURN AIR FILTER - SOLD INDIVIDUALLY

[10] In Stock

SSA913A007A

SCREW,TAP

Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image

[11] In Stock

RKT435A401G

GRILLE,OUT

[11-26] In Stock

PHA435A206K

GRILLE ASSY

[12] In Stock

RKT436A400B

FLAP,A

Notes: UPPER, UPPER HORIZONTAL FLAP

[13] In Stock

RKT436A401B

FLAP,B

Notes: LOWER, LOWER FLAP Show Image

[14] In Stock

RKT436A403B

LOUVER

Notes: 1pc ONLY Show Image

[15] Contact

RKT129A413B

PLATE,CONNECTING

Contact

[16] Out of Stock

RKR935C001B

COLLAR

Substitute: OUT OF PRODUCTION Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[17] In Stock

RKT144A400

CRANK,A

Notes: LOWER Show Image

[18] In Stock

RKT144A401

CRANK,B

Notes: UPPER Show Image

[19] In Stock

RKT144A402

LINK

Show Image

[20] In Stock

RKT129A404

BRACKET,MOT

Notes: FOR FLAP Show Image

[21] In Stock

SSA512T028

MOTOR STEPPING

Notes: FOR FLAP, FOR FLAP‚ - FOR HORIZONTAL UP/DOWN Show Image

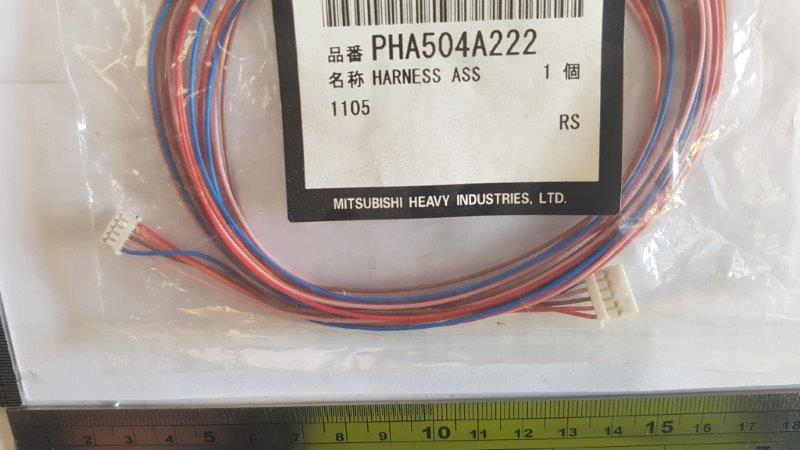

[22] In Stock

PHA504A222

HARNESS ASSY

Notes: FOR FLAP MOTOR Show Image

[23] In Stock

SSA423A114

HOSE,DRAIN

[24] In Stock

SSA326A043

PLUG

Notes: LENGTH 3.5CM Show Image

[25] Contact

RKT131A750

GUARD FAN

Contact

[26] In Stock

RKT129A755

COVER

Show Image

SKU: FDK22KXE6D PANEL ASSY Category: Uncategorised
