FDK15KXZE1/1 HEAT EXCH. AND CONTROL

Name: FDK15KXZE1/1 HEAT EXCH. AND CONTROL
SKU: FDK15KXZE1/1 HEAT EXCH. AND CONTROL
Availability: InStock

FDK15KXZE1/1 HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

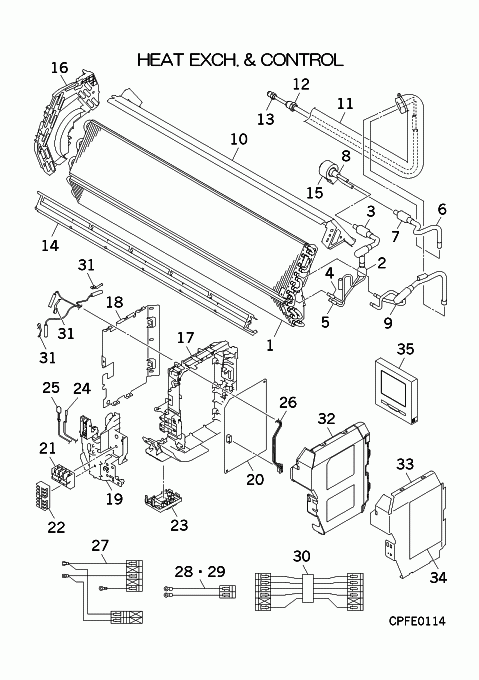

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-16] Contact

PHA301A410

HEAT EXCH ASSY(AIR

Contact

[2] Contact

RSA315A004B

DISTRIBUTOR

Contact

Notes: !

[2-5] Contact

PHA315A405

DISTRIBUTOR ASSY

Contact

[3] In Stock

SSA357A051B

STRAINER

Show Image

[4] Contact

PHA315B421

CAPILLARY(1)

Contact

Notes: !D2.8XD4.0 L110

[5] Contact

PHA315B422

CAPILLARY(2)

Contact

Notes: !D2.8XD4.0 L160

[6-7] Contact

PHA321A436

PIPING ASSY

Contact

[7] In Stock

SSA357A051B

STRAINER

Show Image

[8] Contact

SSA387F064

VALVE,BODY(EXP)

Contact

Notes: SM

[9] Contact

PHA315D408

HEADER ASSY,GAS

Contact

Notes: !

[10] Contact

PHA141A403

PLATE ASSY,BAFFLE

Contact

[11-13] Contact

RLF321A001

PIPE ASSY

Contact

[12] In Stock

SSA323F088

UNION(SLD)

Notes: FOR GAS, LENGTH 2.6CM Show Image

[13] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[14] In Stock

RLF129A106

SEAL

[15] In Stock

SSA382F228BM

COIL, SOLENOID

Notes: FOR SM

[16] Contact

RLF129A119

BRACKET ASSY(L)

Contact

Notes: !

[17] Contact

RLF142A101

BOX,CONTROL

Contact

[17-18] In Stock

RLF142A100

BOX ASSY CONTROL

Notes: ! Show Image

[18] Contact

RLF132A100

COVER,CONTROL

Contact

[19] Contact

RLF129A107

COVER,BEND

Contact

[20] Contact

PHA505A038AB

PWB ASSY

Contact

Notes: ONLY FOR SUPPLY PARTS

[21] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[22] Contact

SSA561B686J

BLOCK,TERMINAL

Contact

Notes: TB2

[23] Contact

RLF129A117

HOLDER,DISPLAY

Contact

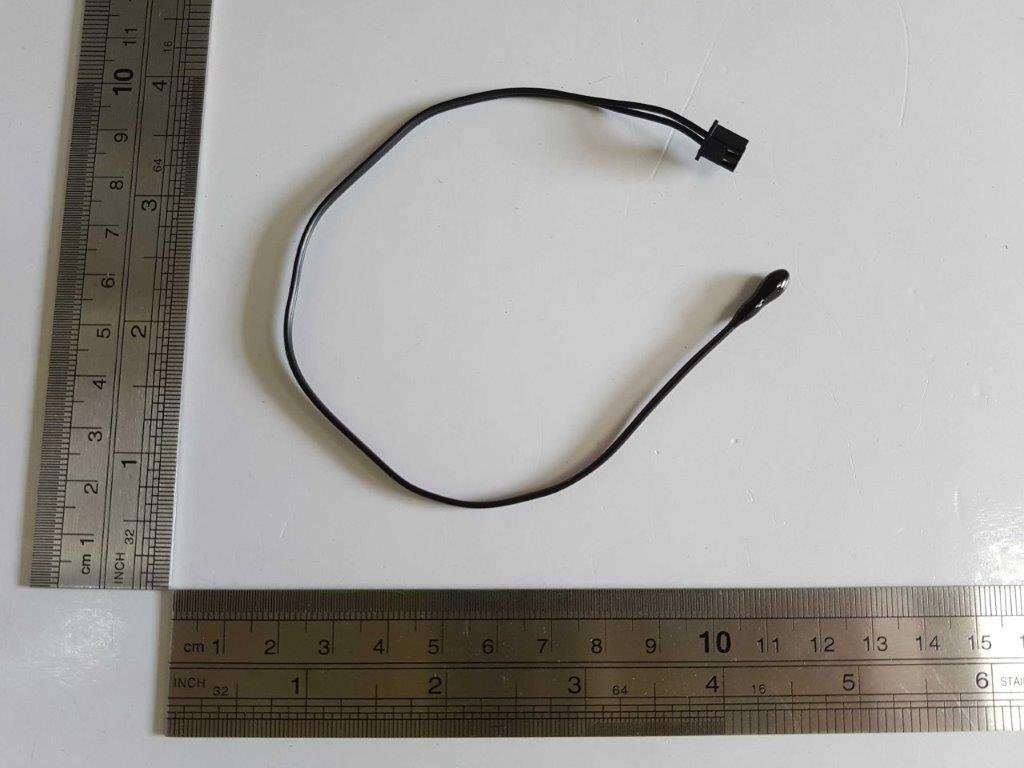

[24] In Stock

PSA551A001GB

SENSOR ASSY

Notes: THI-A, LENGTH 24.8CM Show Image

[25] In Stock

SSA551B017C

SENSOR(HUMIDITY)

Notes: HS, HUMIDITY SENSOR Show Image

[26] In Stock

PJF551A002A

SENSOR ASSY(TEMP)

Notes: THI-R, THI-R1,2,3 Show Image

[27] Contact

PJG504A007H

WIRING(TB,POWER)

Contact

[28] Out of Stock

PJF504A047A

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB

[29] Contact

PHA504A400

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[30] In Stock

PHA504A408

WIRING(FM)

Notes: CNM1 PWB- CNF1

[31] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[32] Contact

RLF132A104

LID,CONTROL

Contact

[32-34] Contact

PHA142A400B

LID ASSY,CONTROL

Contact

Notes: !

[33] Contact

RLF142A105

LID,CONTROL

Contact

[34] Contact

PHA011G402A

LABEL,WIRING

Contact

Notes: !

[35] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[36] Contact

PHA011F402J

LABEL,MODEL NAME

Contact

Notes: !

SKU: FDK15KXZE1/1 HEAT EXCH. AND CONTROL Category: Uncategorised
