FDFW56KXE6D PANEL ASSY

Name: FDFW56KXE6D PANEL ASSY
SKU: FDFW56KXE6D PANEL ASSY
Availability: InStock

FDFW56KXE6D PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

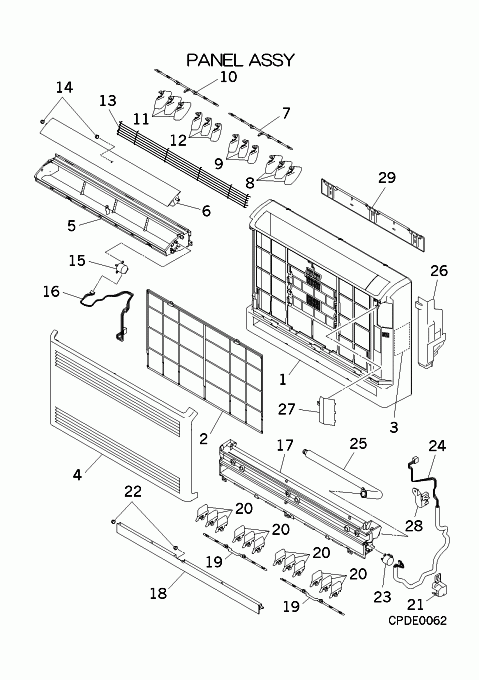

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RFB102A002A

PANEL ASSY,FRONT

Contact

[1-3] Contact

RFB102A001A

PANEL ASSY,FRONT

Contact

[2] In Stock

RFB437A001

FILTER,AIR

Notes: W699xH413(t2), W699XH413(T2)

[3] Contact

PGF011G001

LABEL,WIRING

Contact

[4] Contact

RFB435A005A

PANEL ASSY,AIR IN

Contact

[5] In Stock

RFB435A007

GRILLE ASSY,OUT(U)

[6] In Stock

RFB436A001A

FLAP(UPPER)

[7] In Stock

RFB129A006

PLATE,CONNECTING(U

[7-9] In Stock

RFB436A003

LOUVER ASSY(R)

Notes: RIGHT

[8] In Stock

RFB436A006

LOUVER(UPPER,A)

Notes: 1pc ONLY

[9] In Stock

RFB436A007

LOUVER(UPPER,B)

Notes: 1pc ONLY

[10] In Stock

RFB129A006

PLATE,CONNECTING(U

[10-12] In Stock

RFB436A004

LOUVER ASSY(L)

Notes: LEFT Show Image

[11] In Stock

RFB436A006

LOUVER(UPPER,A)

Notes: 1pc ONLY

[12] In Stock

RFB436A007

LOUVER(UPPER,B)

Notes: 1pc ONLY

[13] In Stock

RFB131A001

GUARD,FAN

[14] Out of Stock

RKW935C200

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[15] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP Show Image

[16] In Stock

RFB504A001

HARNESS ASSY

Notes: FOR MOTOR,FLAP(UPPER) Show Image

[17] Contact

RFB435A008A

GRILLE ASSY,OUT(L)

Contact

[18] In Stock

RFB436A002

FLAP(LOWER)

[19-20] In Stock

RFB436A005

LOUVER ASSY(LOWER)

Notes: 6 LOUVER FINS AND CONNECTING ROD Show Image

[19] Contact

RFB129A007

PLATE,CONNECTING(L

Contact

[20] Contact

RFB436A008

LOUVER(LOWER)

Contact

Notes: 1pc ONLY

[21] Contact

RFB129A008

COVER,MOTOR(B)

Contact

[22] Out of Stock

RKW935C200

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[23] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER Show Image

[24] In Stock

RFB504A001A

HARNESS ASSY

Notes: FOR MOTOR,FLAP(LOWER) Show Image

[25] In Stock

SSA423A114

HOSE,DRAIN

[26] Contact

RFB129A005

COVER(PIPE)

Contact

Substitute: RFB129A005B

[27] In Stock

RFB132A002A

LID (TERMINAL)

Notes: LENGTH 13.5CM Show Image

[28] Contact

RFB937A001

CLAMP

Contact

[29] In Stock

RFB032A002

PLATE,INST(B)
