FDFW28KXE6D/1 CONTROL AND PARTS SET

Name: FDFW28KXE6D/1 CONTROL AND PARTS SET
SKU: FDFW28KXE6D/1 CONTROL AND PARTS SET
Availability: InStock

FDFW28KXE6D/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

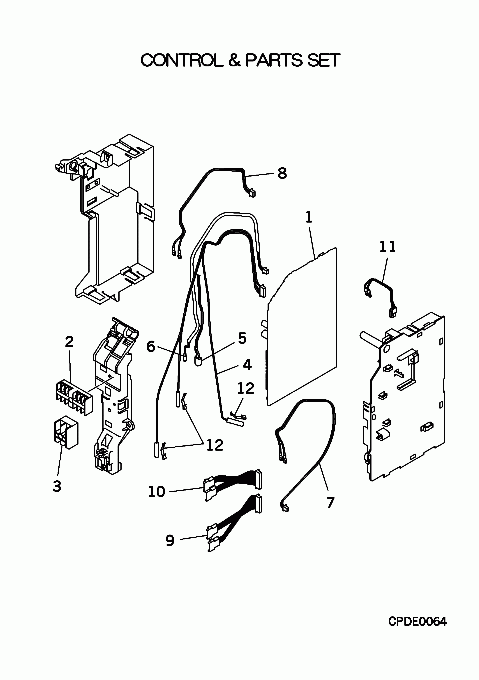

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A210

PWB

Show Image

[1-11] Contact

PGF501A002BB

CONTROL UNIT

Contact

[2] Contact

SSA561B686H

BLOCK,TERMINAL

Contact

Notes: TB1

[3] Contact

SSA561B683C

BLOCK,TERMINAL

Contact

Notes: TB2

[4] Contact

PJF551A002C

SENSOR ASSY(TEMP)

Contact

Notes: THI-R1,2,3

[5] In Stock

SSA551B017B

SENSOR(HUMIDITY)

Notes: HS, LENGTH 52.5CM Show Image

[6] In Stock

PSA551A008AB

SENSOR

Notes: THI-A, THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR Show Image

[7] Contact

PJF504A010B

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB, TB2 A,TB2 B-CNK1 PWB

[8] Contact

PJF504A006A

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[9] Contact

RFB504A003

HARNESS ASSY(DAMP)

Contact

[10] In Stock

RFB504A004

HARNESS ASSY(FLAP)

Show Image

[11] Contact

PHA504A214

HARNESS ASSY(CNU)

Contact

[12] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[13] Contact

PGF011F002B

LABEL,MODEL NAME

Contact
