FDEN508H PANEL ASSY

Name: FDEN508H PANEL ASSY
SKU: FDEN508H PANEL ASSY
Availability: InStock

FDEN508H PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

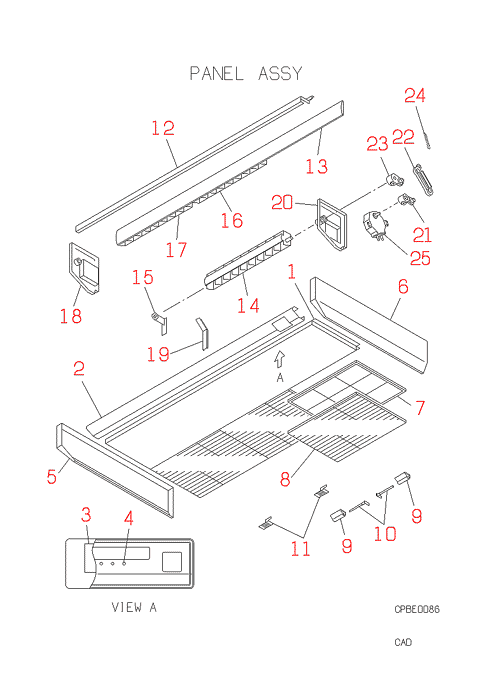

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact

PFA122A208AP

PANEL,FRONT

Contact

[2] Contact

PFA133A204V

LACE

Contact

[3] In Stock

PFA505A213

PWB ASSY

Notes: DISPLAY Show Image

[3-4] In Stock

PFA503A004

CONTROL AMP

Notes: RECEIVER BOARD

[4] In Stock

PFA943A002

BUTTON PUSH

Show Image

[5] In Stock

PFA123A202

PANEL SIDE

Notes: LEFT SIDE

[6] Out of Stock

PFA123A202A

PANEL SIDE

Notes: RIGHT SIDE Show Image

[7] In Stock

PFA437A200

FILTER AIR

Notes: 1pc ONLY, SOME UNITS REQUIRE 3pcs

[8] In Stock

PFA435A200

GRILLE INLE

[9] In Stock

PFA116A200

FIXTURE

Show Image

[10] In Stock

PFA129A207

SHAFT

[11] In Stock

PFA116A201

STOPPER

Show Image

[12] Out of Stock

PFA122A202H

PANEL ASSY

[13] Out of Stock

PFA436A202B

LOUVER ASY

Notes: 1pc ONLY

[13-17] Out of Stock

PFA436A201S

GRILLE AIR

Notes: 1pc ONLY

[14] In Stock

PFA436A208C

LOUVER BLOW

Notes: RIGHT Show Image

[15] Contact

PFA129A204

STAY

Contact

[16] Contact

PFA436A208J

LOUVER BLOW

Contact

Notes: CENTER

[17] Out of Stock

PFA436A208F

LOUVER BLOW

Notes: LEFT

[18] In Stock

PFA129A201D

PLATE,SIDE

Show Image

[19] Contact

PFA116A209A

BRACKET

Contact

[20-24] In Stock

PFA129A211

PLATE ASSY

Show Image

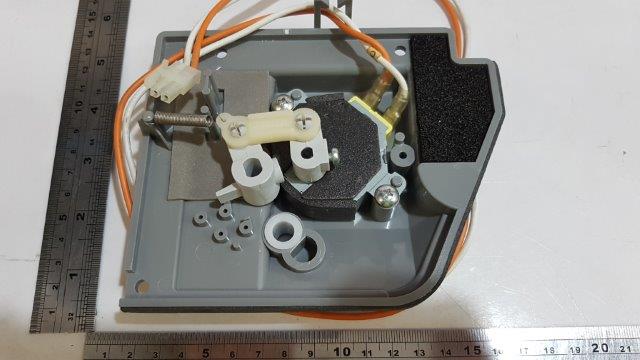

[20-25] In Stock

PFA129A206T

PLATE,SIDE

Show Image

[21] Contact

PFA144A200

LINK

Contact

[21-23] In Stock

PFA144A205

LINK ASSY

Show Image

[22] Contact

PFA144A201

LINK

Contact

[23] Contact

PFA144A202

LINK

Contact

[24] Out of Stock

SAA941D008

SPPING

[25] In Stock

SSA511J303B

MOTOR AC

Notes: FOR FLAP, STEPPING MOTOR Show Image
