FDEN208C PANEL ASSY

Name: FDEN208C PANEL ASSY
SKU: FDEN208C PANEL ASSY
Availability: InStock

FDEN208C PANEL ASSY

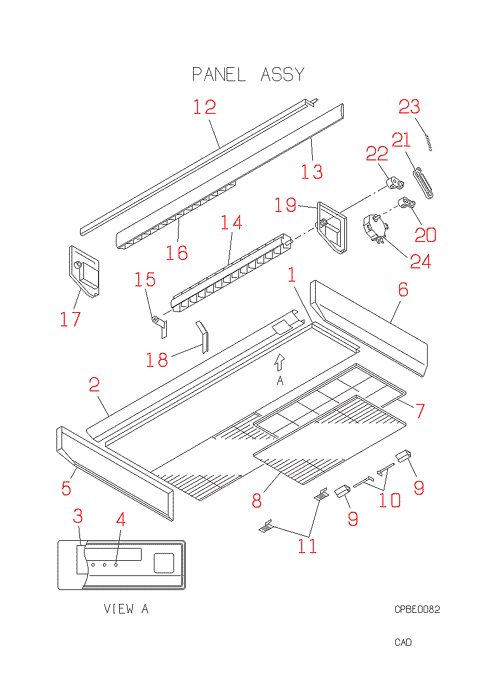

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact

PFA122A206BD

PANEL FRFUJ

Contact

[2] Contact

PFA133A204T

LACE

Contact

[3] In Stock

PFA505A213

PWB ASSY

Notes: DISPLAY Show Image

[3-4] In Stock

PFA503A004

CONTROL AMP

Notes: RECEIVER BOARD

[4] In Stock

PFA943A002

BUTTON PUSH

Show Image

[5] In Stock

PFA123A202

PANEL SIDE

Notes: LEFT SIDE

[6] Out of Stock

PFA123A202A

PANEL SIDE

Notes: RIGHT SIDE Show Image

[7] In Stock

PFA437A200

FILTER AIR

Notes: 1pc ONLY, SOME UNITS REQUIRE 3pcs

[8] In Stock

PFA435A200

GRILLE INLE

[9] In Stock

PFA116A200

FIXTURE

Show Image

[10] In Stock

PFA129A207

SHAFT

[11] In Stock

PFA116A201

STOPPER

Show Image

[12] Contact

PFA122A202D

PANEL ASSY

Contact

[13] Contact

PFA436A202

LOUVER ASSY

Contact

Notes: 1pc ONLY

[13-16] Contact

PFA436A201V

GRILLE,AIR

Contact

Notes: 1pc ONLY

[14] Contact

PFA436A208

LOUVER BLOW

Contact

Notes: RIGHT

[15] Contact

PFA129A204

STAY

Contact

[16] Contact

PFA436A208D

LOUVER BLOW

Contact

Notes: LEFT

[17] Contact

PFA129A201

PLATE SIDE

Contact

Substitute: PFA129A201C

[18] Contact

PFA116A209

BRACKET

Contact

[19-23] In Stock

PFA129A211

PLATE ASSY

Show Image

[19-24] Contact

PFA129A206P

PLATE,SIDE

Contact

[20] Contact

PFA144A200

LINK

Contact

[20-22] In Stock

PFA144A205

LINK ASSY

Show Image

[21] Contact

PFA144A201

LINK

Contact

[22] Contact

PFA144A202

LINK

Contact

[23] Contact

SAA941D007

SPPING

Contact

[24] In Stock

SSA511J303B

MOTOR AC

Notes: FOR FLAP, STEPPING MOTOR Show Image

SKU: FDEN208C PANEL ASSY Category: Uncategorised
