FDEN125V HEAT EXCH. ASSY

Name: FDEN125V HEAT EXCH. ASSY
SKU: FDEN125V HEAT EXCH. ASSY
Availability: InStock

FDEN125V HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

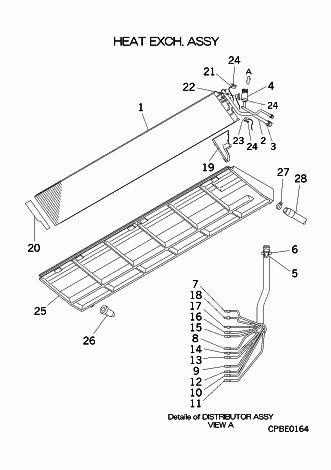

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PFA311A604

HEAT EXCH(AIR)

Contact

[1-24] Out of Stock

PFA301A604C

HEAT EXCH ASSY

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION - NO SUBS

[2-3] Contact

PFA315D605C

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012J

UNION

Contact

[4] Contact

PFA315A606

DISTRIBUTAR

Contact

[4-18] Contact

PFA315A604

DISTRIBUTAR

Contact

[5] In Stock

SSA357H034

STRAINER

Show Image

[6] Contact

SSA323F075A

UNION

Contact

[7] Contact

PFA315B707

CAPILLARY

Contact

Notes: !D1.6XD3.2 L210

[8] Contact

PFA315B708

CAPILLARY

Contact

Notes: !D2.4XD4.0 L180

[9] Contact

PFA315B709

CAPILLARY

Contact

Notes: !D2.4XD4.0 L190

[10] Contact

PFA315B710

CAPILLARY

Contact

Notes: !D2.4XD4.0 L210

[11] Contact

PFA315B711

CAPILLARY

Contact

Notes: !D1.8XD3.2 L220

[12] Contact

PFA315B712

CAPILLARY

Contact

Notes: !D2.0XD3.2 L180

[13] Contact

PFA315B713

CAPILLARY

Contact

Notes: !D2.4XD4.0 L150

[14] Contact

PFA315B714

CAPILLARY

Contact

Notes: !D2.4XD4.0 L160

[15] Contact

PFA315B715

CAPILLARY

Contact

Notes: !D2.4XD4.0 L150

[16] Contact

PFA315B716

CAPILLARY

Contact

Notes: !D2.4XD4.0 L170

[17] Contact

PFA315B717

CAPILLARY

Contact

Notes: !D2.4XD4.0 L180

[18] Contact

PFA315B718

CAPILLARY

Contact

Notes: !D2.4XD4.0 L180

[19] Contact

PFA141A608

PLATE ASSY

Contact

[20] Contact

PFA141A609

PLATE ASSY

Contact

[21] In Stock

PJA551A005C

SENSOR

Notes: THI-R Show Image

[22] In Stock

PJA551A005CF

SENSOR(TEMPERATURE

Notes: THI-R2 Show Image

[23] In Stock

PSA551A007G

SENSOR ASSY(TEMP)

Notes: THI-R3 Show Image

[24] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[25-26] In Stock

PFA454A613A

PAN ASSY,DRAIN

[26] In Stock

SSA326A003F

PLUG

Show Image

[27] In Stock

V300Y30

CLAMP

Show Image

[28] Contact

SSA423A060F

HOSE

Contact

Substitute: PFA423A200D
