FDEJ36HKXE2B PANEL ASSY

Name: FDEJ36HKXE2B PANEL ASSY
SKU: FDEJ36HKXE2B PANEL ASSY
Availability: InStock

FDEJ36HKXE2B PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

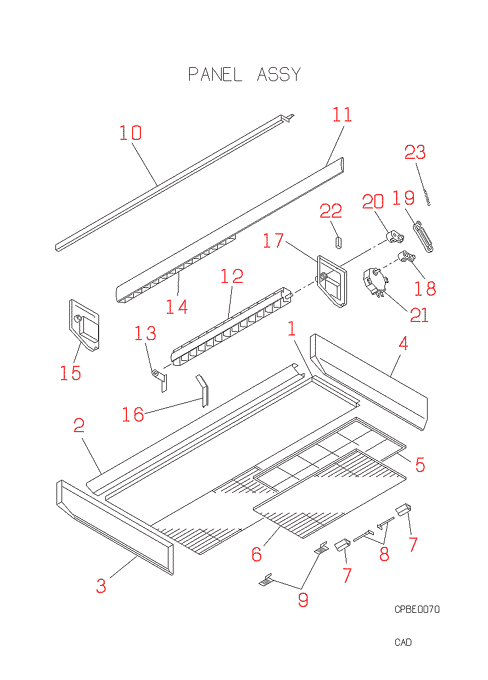

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact

PFA122A206AS

PANEL FRONT

Contact

[2] Contact

PFA133A204L

LACE

Contact

[3] In Stock

PFA123A202

PANEL SIDE

Notes: LEFT, LEFT SIDE

[4] Out of Stock

PFA123A202A

PANEL SIDE

Notes: RIGHT, RIGHT SIDE Show Image

[5] In Stock

PFA437A200

FILTER AIR

Notes: W459XD243.5(T3), SOME UNITS REQUIRE 3pcs

[6] In Stock

PFA435A200

GRILLE INLE

[7] In Stock

PFA116A200

FIXTURE

Show Image

[8] In Stock

PFA129A207

SHAFT

[9] In Stock

PFA116A201

STOPPER

Show Image

[10] Contact

PFA122A202

PANEL FRONT

Contact

[11] Contact

PFA436A202

LOUVER ASSY

Contact

[11-14] Contact

PFA436A201D

GRILLE,AIR

Contact

Notes: !

[12] Contact

PFA436A208

LOUVER BLOW

Contact

Notes: RIGHT

[13] Contact

PFA129A204

STAY

Contact

[14] Contact

PFA436A208D

LOUVER BLOW

Contact

Notes: LEFT

[15] Contact

PFA129A201

PLATE SIDE

Contact

Substitute: PFA129A201C Notes: LEFT

[16] Contact

PFA116A209

BRACKET

Contact

[17-20] In Stock

PFA129A211

PLATE ASSY

Notes: ONLY FOR SUPPLY PARTS RIGHT Show Image

[17-23] Contact

PFA129A206K

PLATE,SIDE

Contact

Notes: RIGHT

[18] Contact

PFA144A200

LINK

Contact

[18-20] In Stock

PFA144A205

LINK ASSY

Notes: ONLY FOR SUPPLY PARTS Show Image

[19] Contact

PFA144A201

LINK

Contact

[20] Contact

PFA144A202

LINK

Contact

[21] In Stock

SSA511J303B

MOTOR AC

Notes: STEPPING MOTOR Show Image

[22] In Stock

PFA523J001A

MICRO SWITC

Show Image

[23] Contact

SAA941D007

SPPING

Contact

SKU: FDEJ36HKXE2B PANEL ASSY Category: Uncategorised
