FDEJ140HKXE2B PANEL ASSY

Name: FDEJ140HKXE2B PANEL ASSY
SKU: FDEJ140HKXE2B PANEL ASSY
Availability: InStock

FDEJ140HKXE2B PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

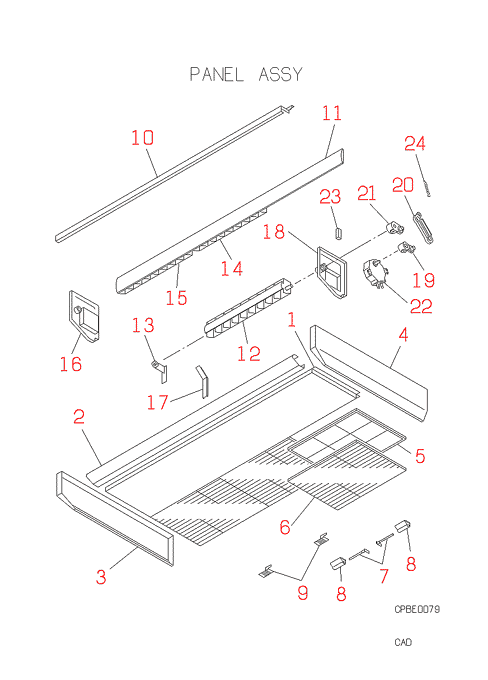

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact

PFA122A208AK

PANEL,FRONT

Contact

[2] Contact

PFA133A204N

LACE

Contact

[3] In Stock

PFA123A202

PANEL SIDE

Notes: LEFT, LEFT SIDE

[4] Out of Stock

PFA123A202A

PANEL SIDE

Notes: RIGHT, RIGHT SIDE Show Image

[5] In Stock

PFA437A200

FILTER AIR

Notes: W459XD243.5(T3), SOME UNITS REQUIRE 3pcs

[6] In Stock

PFA435A200

GRILLE INLE

[7] In Stock

PFA116A200

FIXTURE

Show Image

[8] In Stock

PFA129A207

SHAFT

[9] In Stock

PFA116A201

STOPPER

Show Image

[10] Out of Stock

PFA122A202C

PANEL ASSY

[11] Out of Stock

PFA436A202B

LOUVER ASY

[11-15] In Stock

PFA436A201H

GRILL AIR

Notes: !

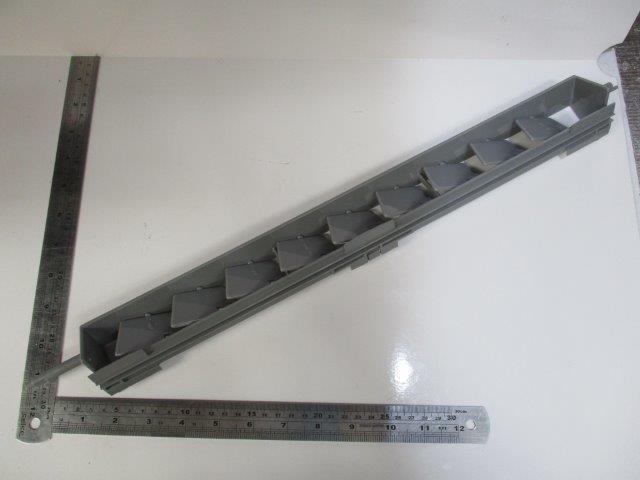

[12] In Stock

PFA436A208C

LOUVER BLOW

Notes: RIGHT Show Image

[13] Contact

PFA129A204

STAY

Contact

[14] Contact

PFA436A208J

LOUVER BLOW

Contact

Notes: CENTER

[15] Contact

PFA436A208H

LOUVER BLOW

Contact

Notes: LEFT

[16] In Stock

PFA129A201D

PLATE,SIDE

Notes: LEFT Show Image

[17] Contact

PFA116A209A

BRACKET

Contact

[18-21] In Stock

PFA129A211A

PLATE ASSY

Notes: ONLY FOR SUPPLY PARTS RIGHT Show Image

[18-24] Contact

PFA129A206N

PLATE ASSY

Contact

Notes: RIGHT

[19] Contact

PFA144A200

LINK

Contact

[19-21] In Stock

PFA144A205

LINK ASSY

Notes: ONLY FOR SUPPLY PARTS Show Image

[20] Contact

PFA144A201

LINK

Contact

[21] Contact

PFA144A202

LINK

Contact

[22] In Stock

SSA511J303B

MOTOR AC

Notes: STEPPING MOTOR Show Image

[23] In Stock

PFA523J001A

MICRO SWITC

Show Image

[24] Out of Stock

SAA941D008

SPPING
