FDEA71KXE4 CONTROL AND PARTS SET

Name: FDEA71KXE4 CONTROL AND PARTS SET
SKU: FDEA71KXE4 CONTROL AND PARTS SET
Availability: InStock

FDEA71KXE4 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

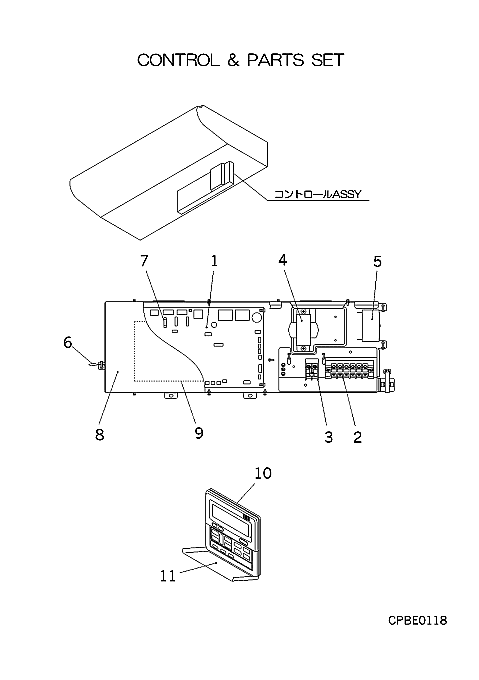

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA505A129ZH

PWB ASSY

Contact

[1-7] Contact

PFA501A602C

Contact

[2] Contact

SSA561B677C

BLOCK,TERMI

Contact

Notes: TB1

[3] Contact

SSA561B683A

BLOCK TERMI

Contact

Notes: TB2

[4] In Stock

SSA554A454

TRANSFORMER

Notes: TR Show Image

[5] Contact

SSA552A089

CAPACITOR

Contact

Notes: CFI1

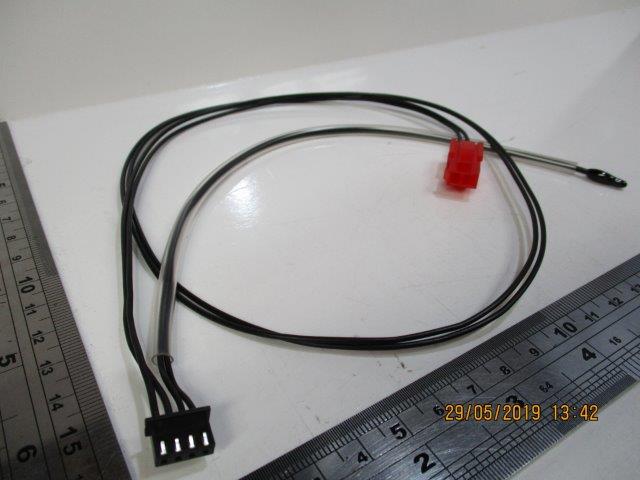

[6] In Stock

PJA551A700C

SENSOR

Notes: THI-A,R Show Image

[7] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: F1 3.15A, 3.15 AMP FUSE Show Image

[8-9] Contact

PFA142A601B

LID ASSY,CO

Contact

[9] Contact

PFA011G602

LABEL,WIRING

Contact

[10-11] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[11] Contact

PJA129A708

COVER Z

Contact

[12] Contact

PFA011F606D

Contact

SKU: FDEA71KXE4 CONTROL AND PARTS SET Category: Uncategorised
