FDEA112KXE4A CONTROL AND PARTS SET

Name: FDEA112KXE4A CONTROL AND PARTS SET
SKU: FDEA112KXE4A CONTROL AND PARTS SET
Availability: InStock

FDEA112KXE4A CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

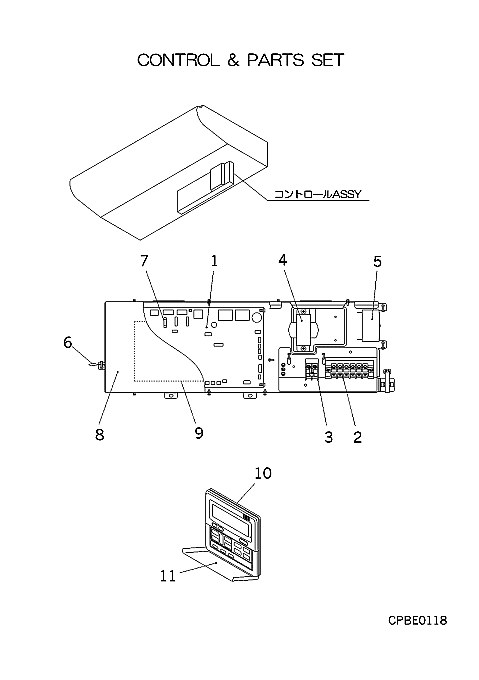

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A139ZH

PWB ASSY

Show Image

[1-7] Contact

PFA501A605C

CONTROL UNIT

Contact

[2] Contact

SSA561B677C

BLOCK,TERMI

Contact

Notes: TB1

[3] Contact

SSA561B683A

BLOCK TERMI

Contact

Notes: TB2

[4] In Stock

SSA554A454

TRANSFORMER

Notes: TRI Show Image

[5] In Stock

SSA552A089A

CAPACITOR

Notes: CFI1 2MF 400VAC Show Image

[6] In Stock

PJA551A700D

SENSOR

Notes: THI-A Show Image

[7] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[8-9] Contact

PFA142A601B

LID ASSY,CO

Contact

[9] Contact

PFA011G602

LABEL,WIRING

Contact

[10-11] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[11] Contact

PJA129A708

COVER Z

Contact

[12] Contact

PFA011F608F

LABEL,MODEL NAME

Contact

SKU: FDEA112KXE4A CONTROL AND PARTS SET Category: Uncategorised
