FDE71KXE6F/1 CONTROL AND PARTS SET

Name: FDE71KXE6F/1 CONTROL AND PARTS SET
SKU: FDE71KXE6F/1 CONTROL AND PARTS SET
Availability: InStock

FDE71KXE6F/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

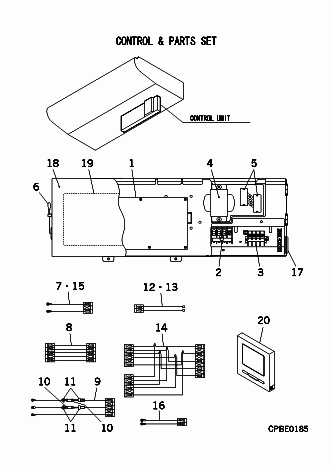

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A199VF

PWB ASSY

Show Image

[1-17] Contact

PFA501A624JK

Contact

[2] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

[5] Contact

SSA552A865A

CAPACITOR,RUNNING

Contact

Substitute: SSA552A497AA Notes: CFI1,2 1.5MF 400VAC

[6] In Stock

PSA551A008AB

SENSOR

Notes: THI-A, THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR Show Image

[7] Contact

PJF504A006A

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[8] Contact

PFA504A612

WIRING(LM)

Contact

Notes: CNJ2 LM- CNJ1 PWB

[9-11] Contact

PFA504A618G

WIRING(TB,POWER)

Contact

Notes: TB1 1,TB1 2- CNW0 PWB,CNU

[10] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: F 3.15A, 3.15 AMP FUSE Show Image

[11] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[12] Contact

PFA504A616A

HARNESS(CF)

Contact

Notes: CNFI1 2- CNFI1 2,CFI1 2

[13] Contact

PFA504A616B

HARNESS(CF)

Contact

Notes: CNFI1 2- CNFI1 2,CFI1 2

[14] Contact

PFA504A621A

WIRING(FM)

Contact

Notes: CNF1 FMI1,CNF2 FMI2- CNM3 PWB

[15] Contact

PFA504A617A

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB2

[16] Contact

PJF504A010D

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[17] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[18-19] Contact

PFA142A606C

LID ASSY,CONTROL B

Contact

[19] Contact

PFA011G612

LABEL,WIRING

Contact

[20] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[21] Contact

PFA011F650G
