FDE56KXZE1/1 CONTROL AND PARTS SET

Name: FDE56KXZE1/1 CONTROL AND PARTS SET
SKU: FDE56KXZE1/1 CONTROL AND PARTS SET
Availability: InStock

FDE56KXZE1/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

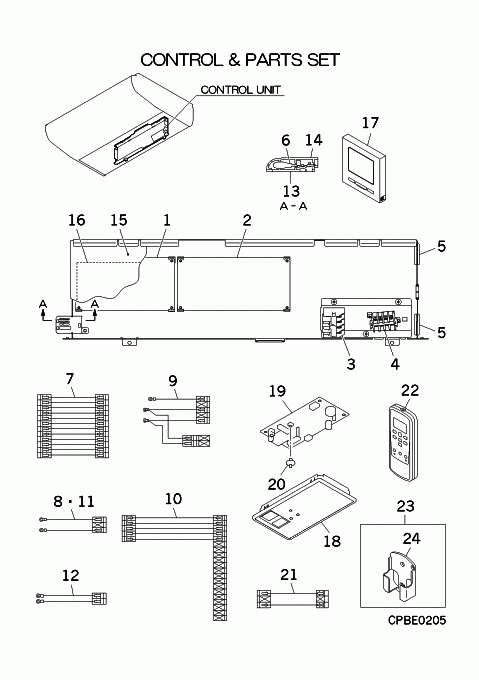

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A229JA

PWB ASSY

Notes: ONLY FOR SUPPLY PARTS

[1-14] Contact

PFA501A628BH

CONTROL UNIT

Contact

Notes: !

[2] In Stock

PJA505A230R

PWB ASSY(POWER)

Notes: ONLY FOR SUPPLY PARTS

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[6] In Stock

PSA551A001H

SENSOR ASSY

Notes: THI-A Show Image

[7] In Stock

PJG504A001A

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB Show Image

[8] Contact

PJF504A006S

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[9] Contact

PJG504A007C

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU

[10] Contact

PFA504A612C

WIRING(LM)

Contact

Notes: CNJ2 LM- CNJ1 PWB

[11] Contact

PFA504A617F

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB2

[12] Contact

PJF504A010N

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[13] Contact

PJF129A014

BASE,HOLDER

Contact

[14] Contact

PJF129A015

COVER.HOLDER

Contact

[15] In Stock

PFA142A610

LID ASSY,CONTROL

[16] Contact

PFA011G616

LABEL,WIRING

Contact

Notes: !

[17] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[18] Contact

PFA129A609A

PANEL,ORNAMENT

Contact

[18-21] In Stock

PFA503A600J

CONTROL ASSY

Notes: Includes Receiver PCB, Receiver Facia & Wiring harness Show Image

[18-24] Contact

PFA006A605A

WIRELESS KIT

Contact

Notes: !, Sales Item

[19] In Stock

PJZ505A046A

PWB ASSY

Notes: PCB for wireless kit

[20] Out of Stock

PJA943A700D

BOTTON P0S

[21] Contact

PFA504A620A

WIRING ASSY

Contact

Notes: CNB2- CNB WIRELESS PWB

[22] In Stock

PJA502A704BA

REMOTE CONTROL

Notes: WIRELESS REMOTE CONTROL - PART OF WIRELESS KIT Show Image

[23-24] Contact

PFA006A224

PARTS SET(REMOCON)

Contact

Substitute: PFA006A224C

[24] In Stock

RKN032A002B

HOLDER

Show Image

[25] Contact

PFA011F661F

LABEL,MODEL NAME

Contact

Notes: !

SKU: FDE56KXZE1/1 CONTROL AND PARTS SET Category: Uncategorised
