FDE56KXE6D FAN ASSY AND CABINET

Name: FDE56KXE6D FAN ASSY AND CABINET
SKU: FDE56KXE6D FAN ASSY AND CABINET
Availability: InStock

FDE56KXE6D FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

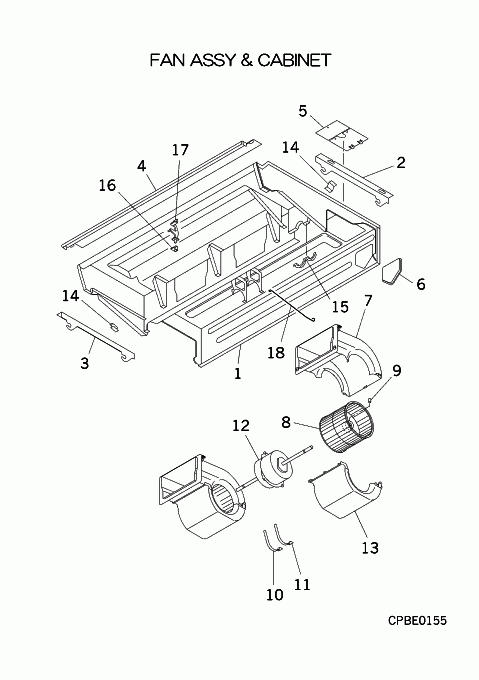

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] Contact

PFA100A605C

CABINET ASSY

Contact

[2] In Stock

PFA032A600

HOLDER

Notes: RIGHT Show Image

[3] In Stock

PFA032A600A

HOLDER

Notes: LEFT Show Image

[4] Contact

PFA122A606B

PANEL,FRONT(U)

Contact

[5] In Stock

PFA132A603

LID

Show Image

[6] In Stock

PFA132A601

LID U

[7] Out of Stock

PFA433B601

CASING

Notes: UPPER

[8-9] In Stock

SSA431D077

IMPELLER

[9] Contact

SSA912F002DF

SCREW,SET(S

Contact

Notes: M6X8, 1pc ONLY

[10] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[11] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[12] In Stock

SSA511T207A

MOTOR,AC

[13] Contact

PFA433B601A

CASING

Contact

Notes: LOWER

[14] Contact

PFA116A605A

BRACKET

Contact

[15] Contact

PFA116A609

LID

Contact

[16] Out of Stock

PFA129A608

SUPPORT

[17] Out of Stock

PFA129A600

SUPPORT

[18] Contact

PFA962C600

WIRE

Contact
