FDE56KXE6 HEAT EXCH. ASSY

Name: FDE56KXE6 HEAT EXCH. ASSY
SKU: FDE56KXE6 HEAT EXCH. ASSY
Availability: InStock

FDE56KXE6 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

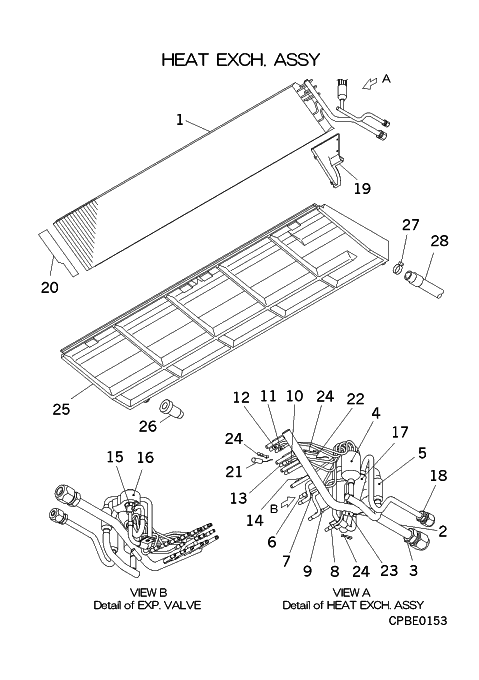

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PFA311A603A

HEAT EXCH(AIR)

Contact

Notes: !

[1-24] Contact

PFA301A606J

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PFA315D603F

HEADER ASSY,GAS

Contact

Notes: !

[3] Contact

SSA323F012G

UNION,SOLDER

Contact

[4] Contact

PJA315A703H

DISTRIBUTOR

Contact

Notes: !

[4-14] Contact

PFA315A608

DISTRIBUTOR

Contact

[5] In Stock

SSA357A059T

STRAINER

[6] Contact

PFA315B720A

CAPILLARY

Contact

Notes: D3.0XD4.0 L170, !D3.0XD4.0 L170

[7] Contact

PFA315B721A

CAPILLARY

Contact

Notes: D2.8XD4.0 L140, !D2.8XD4.0 L140

[8] Contact

PFA315B722A

CAPILLARY

Contact

Notes: D3.0XD4.0 L220, !D3.0XD4.0 L220

[9] Contact

PFA315B729

CAPILLARY

Contact

Notes: D3.0XD4.0 L210, !D3.0XD4.0 L210

[10] Contact

PFA315B724A

CAPILLARY

Contact

Notes: D3.0XD4.0 L200, !D3.0XD4.0 L200

[11] Contact

PFA315B725A

CAPILLARY

Contact

Notes: D3.0XD4.0 L190, !D3.0XD4.0 L190

[12] Contact

PFA315B726A

CAPILLARY

Contact

Notes: D2.4XD4.0 L190, !D2.4XD4.0 L190

[13] Contact

PFA315B727A

CAPILLARY

Contact

Notes: D2.8XD4.0 L170, !D2.8XD4.0 L170

[14] Contact

PFA315B728A

CAPILLARY

Contact

Notes: D2.8XD4.0 L130, !D2.8XD4.0 L130

[15] Out of Stock

SSA387F047

VALVE EXP

Notes: SM, EEV - VALVE BODY Show Image

[16] In Stock

SSA382F210H

COIL

Notes: FOR SM

[17] In Stock

SSA357A059B

STRAINER

[18] Contact

SSA323F075

UNION

Contact

[19] Contact

PFA141A606

PLATE ASSY

Contact

[20] Contact

PFA141A607

PLATE ASSY

Contact

[21] In Stock

PJA551A005C

SENSOR

Notes: THI-R1, THI-R Show Image

[22] Contact

PJA551A005BW

SENSOR

Contact

Notes: THI-R2

[23] In Stock

PSA551A007G

SENSOR ASSY(TEMP)

Notes: THI-R3 Show Image

[24] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[25-26] Out of Stock

PFA454A607

DRAIN PAN

[26] In Stock

SSA326A003F

PLUG

Show Image

[27] In Stock

V300Y30

CLAMP

Show Image

[28] Contact

SSA423A060F

HOSE

Contact

Substitute: PFA423A200D
