FDE112KXE6 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

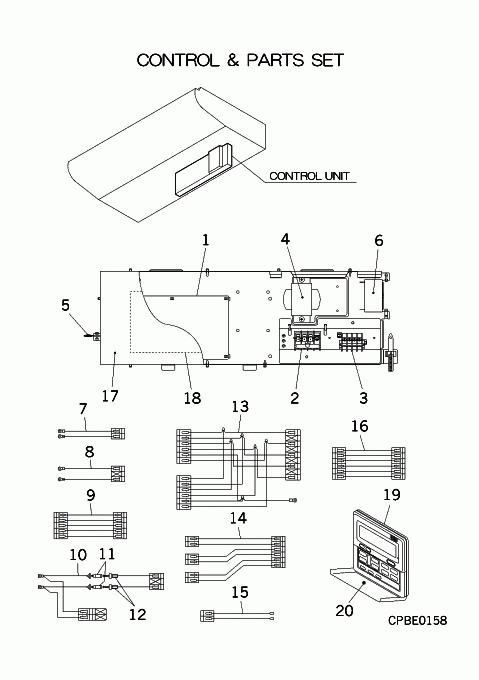

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA505A193ZF

PWB ASSY

Contact

[1-16] Contact

PFA501A616CN

Contact

[2] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

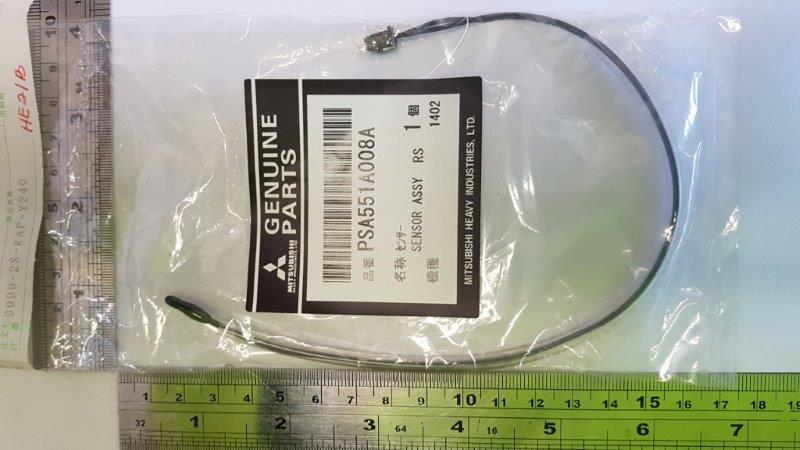

[5] In Stock

PSA551A008A

SENSOR ASSY

Notes: THI-A Show Image

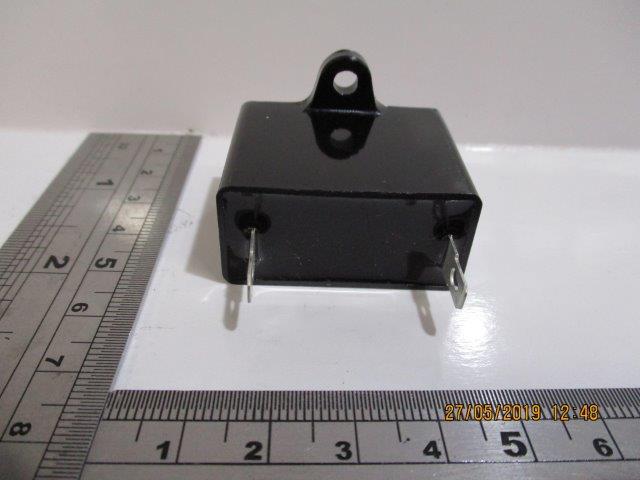

[6] In Stock

SSA552A089A

CAPACITOR

Notes: CFI1 2MF 400VAC Show Image

[7] Contact

PJF504A010B

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B-CNK1 PWB

[8] In Stock

PJF504A006

WIRING(TB,XY)

Notes: TB2 X,TB2 Y-CNB PWB, Control PWB to Terminal Block

[9] Contact

PFA504A612

WIRING(LM)

Contact

Notes: CNJ2-CNJ1 PWB, CNJ2 LM- CNJ1 PWB

[10-12] Contact

PFA504A618B

WIRING(TB,POWER)

Contact

[11] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[12] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[13] Contact

PFA504A614AB

WIRING(FM)

Contact

[14] In Stock

PFA504A615

WIRING(THI-R)

Notes: CNN3,CNN4,CNN5-CNN PWB

[15] Contact

PFA504A616

HARNESS(CF)

Contact

Notes: CNFI-CFI,CFI

[16] Out of Stock

PFA504A619B

WIRING(EEV)

Notes: CNA2 EEV-CNA PWB

[17-18] Contact

PFA142A601J

LID ASSY,CONTROL B

Contact

[18] Contact

PFA011G608

LABEL,WIRING

Contact

[19-20] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E3, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[20] Contact

PJA129A708

COVER Z

Contact

[21] Contact

PFA011F631F

Contact
